Flash Measuring Machine Chotest VX5100

Ngày đăng: 02/22/2026 - 0 lượt xem

Giá: Liên hệ

Xuất xứ:
Tình trạng:
Model:
Bảo hành:

Số lượng:

Mua hàng

Hotline:

Hotline: 0365930441

Mô tả sản phẩm
Thông số kỹ thuật
Chi tiết dòng sản phẩm
Tài liệu kỹ thuật

details

Model		VX5100
Image Senor		5MP CMOS
Outside Monitor		24" LCD (XGA:1920×1080)
Acceptance Lens		Double Telecentric Lens
Back Light		Telecentric transmission illumination
F.O.V.		Φ100mm
Repeatability		±2um
Accuracy *1		±5um
Software		VisionX
Resolution		0.1um
XY Obejct Table(Optional)	Retational Speed	0.2 Revolution/s
	Diameter	Φ60mm
	Capacity	3kg
Size(LxWxH)		736×200×325mm
Weight		25kg
Input		AC100~240V,50/60Hz,1.3A,150W
Working Environment		Temp.10 °C~35 °C, Humidity 20~80%, Vibration<0.002g, Less than 15Hz
Remark: *1 In the focus position, the environment temperature is +20 °C ± 1.0 °C

Features

Geometric Tolerance Straightness, Roundness, Concentricity, Symmetry, Positional Tolerance, Parallelism, Perpendicularity, Proﬁle Tolerance, etc.

CNC Mode Modify CNC program anytime, as well as adding or reducing features, OK or NG is concluded according to tolearance in CNC program

Automatic Only need to select the measuring features, after placing the workpiece, measuring results can be obtained quickly by one key

Coordinate System Can create coordinate system by Point-line, Line-line, and translate & rotate coordinate system, as well as create multi-coordinate system

Special tools Rounded corner, Contour, Thread, Slot, Perimeter, Pitch distance, Thickness, Chamfer, Spring, Gear, Sealing gasket, area, Pitch Angle, Boundary width

DXF Import

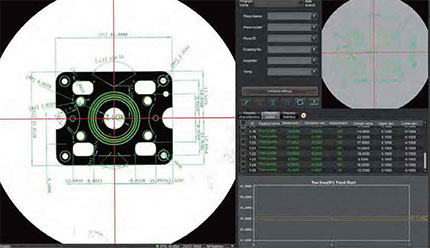

Measurement data can be obtained from CAD drawings. Even if the test object is not physically available, you can still create measurement programs quickly.The system can automatically assign features and dimensions from the DXF drawing to the sample, including surface dimensions

Sample

Automatically assign DXF features to the sample

CNC Measure

Barcode Scanner

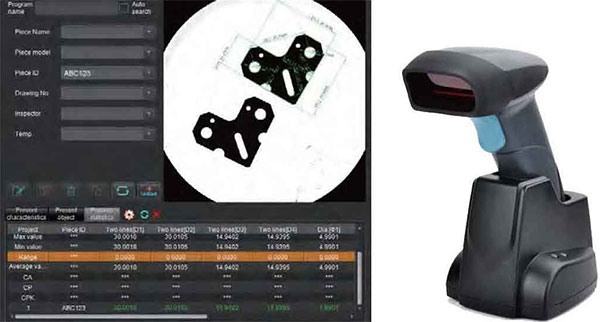

The barcode value which is read by Scanner can be saved as inspection information, or used to search program according to definition of the operator.

User Management

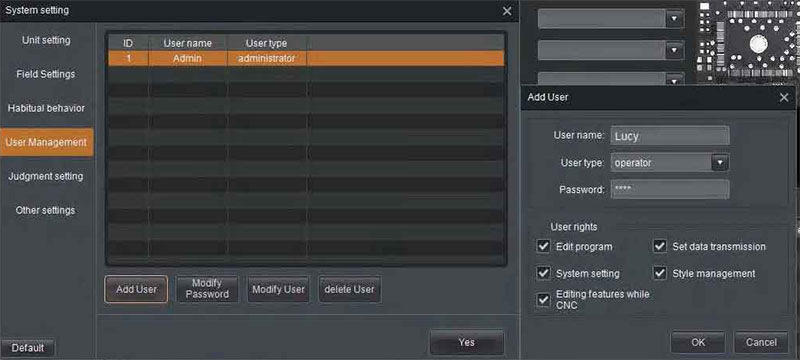

The accounts can be defined as administrator or operator, and user rights of the operator account could be constrained according to requirement.

Statisticl Analysis

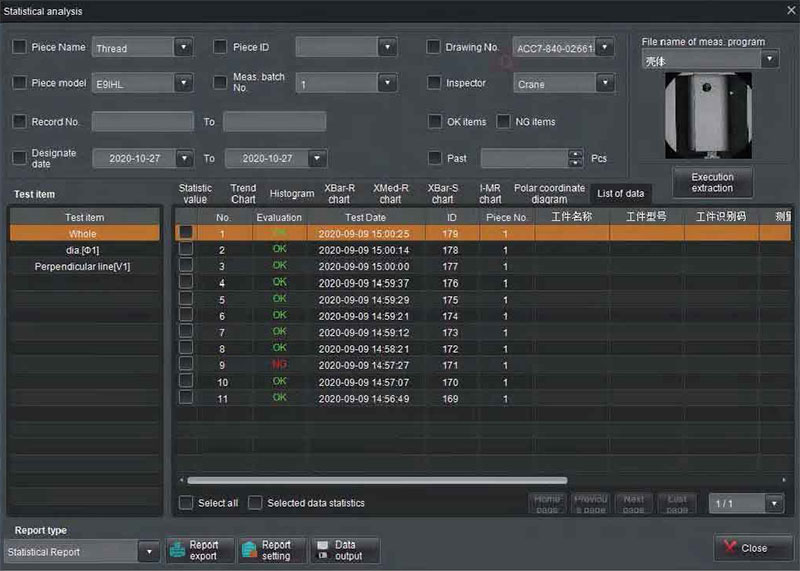

The statistical analysis interface has the tabs of [Statistical Value], [Trend Chart], [Histogram] and [Data List]

Automatic recording and sorting

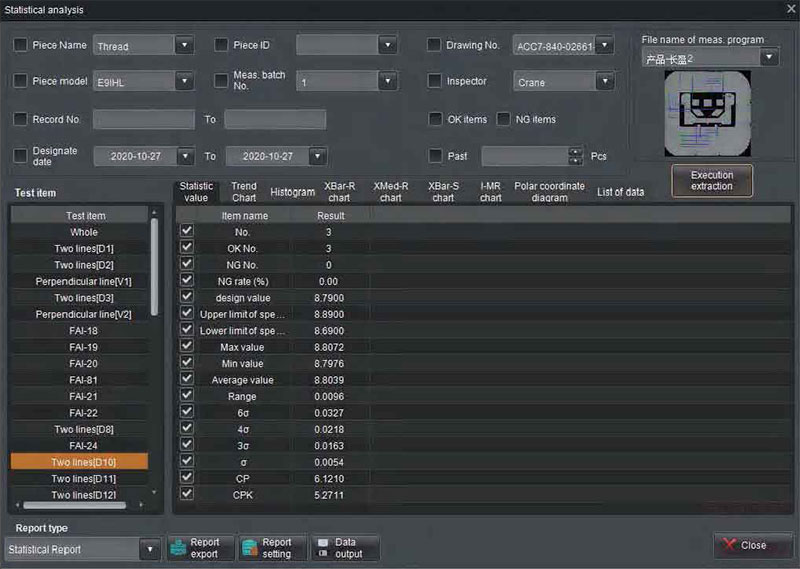

Measurement results and its main statistical information (e.g. average value, σ, 3σ, 6σ, Ca, Cp, Cpk etc) will be automatically recorded and saved. Operator could search records by different conditions.

Statistic

Tabled data

Control production process and improve product quality

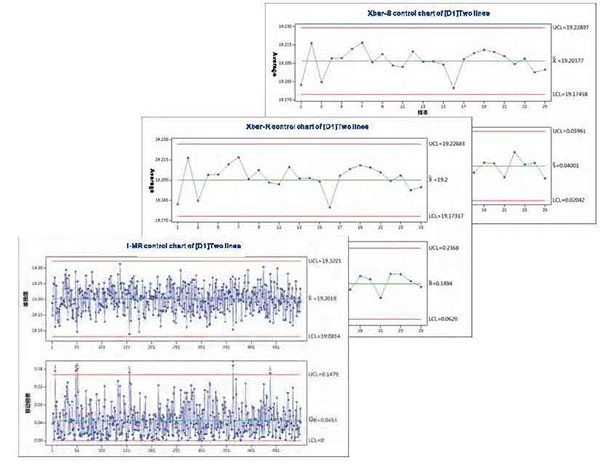

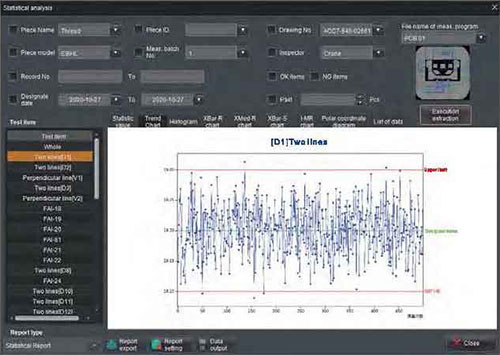

The trend chart monitors the abnormalities of generating equipment and production process by regularly changing trend of measured values. Such as the monotonic and periodic changes of the measured values.

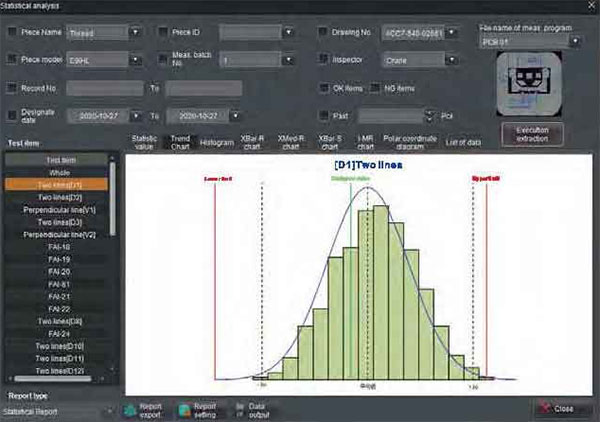

The histogram reflects the fluctuation and distribution of product quality, and transmits information about process quality, which can be used to judge and predict product quality and unqualified rate.

Trend Chart

Histogram

By quality diagnosis and analysis, SPC statistical method can not only realize the monitoring of product quality, but also reflect the change trend in the generation process, reduce the waste caused by post-inspection, so as to achieve the effect of controlling the production process and improving product quality.
