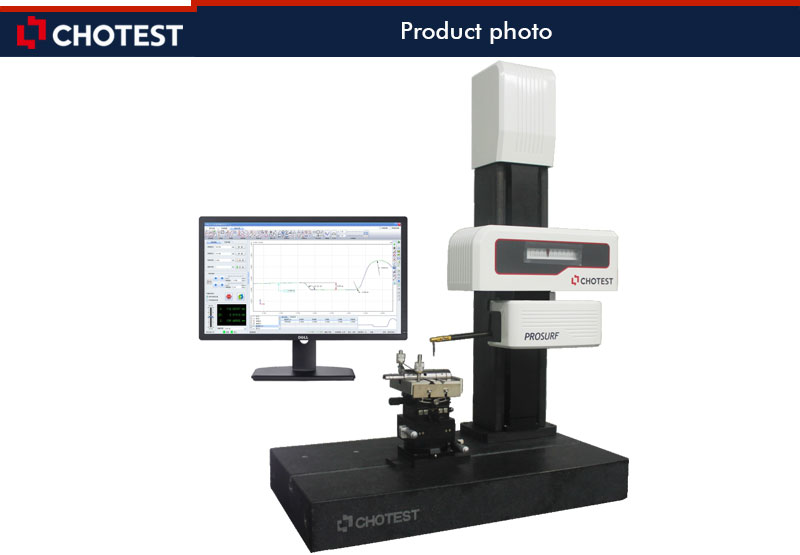

Chotest Profilometer & Roughness measuring machine SJ5718-PR, SJ5718-P, SJ5718-R

Ngày đăng: 02/47/2026 - 0 lượt xem

Giá: Liên hệ

Xuất xứ:
Tình trạng:
Model:
Bảo hành:

Số lượng:

Mua hàng

Hotline:

Hotline: 0365930441

Mô tả sản phẩm
Thông số kỹ thuật
Chi tiết dòng sản phẩm
Tài liệu kỹ thuật

Item No.: SJ5718-P

Product name: Profile measuring machine

X-axis measuring range: 0~100mm

X-axis indication error: ±(0.6+0.02L)µm(L,mm)

Z1-axis measuring range: ±30mm

Z1-axis resolution: 0.001μm

Z1-axis indication error: ±(0.6+|5H)µm(H,mm)

Scanning speed: 0.06~5mm/s

Manufacturer: Chotest Technology Inc.

details

Functions

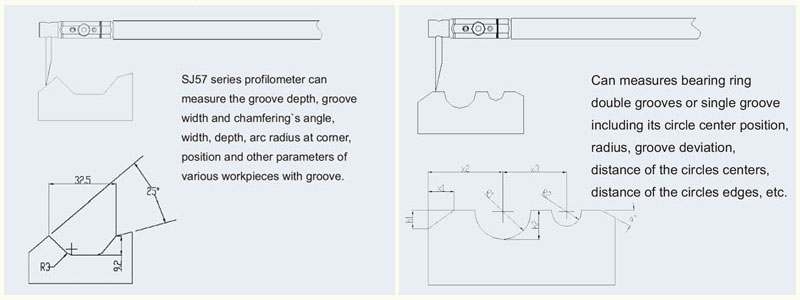

1. Surface contour evaluation: It can evaluate radius, angle, distance, coordinates, circle, circular cross section, and determine the points, each intersectant point, coordinate axis, straight line, vertical line, circle and circular cross section, and analyze the straightness, roundness of contour; More functions:
(1)Establish a regression line and a circle
(2)Establish the points, intersectant points, free points, center point, the highest point and the lowest point
(3)Establish the coordinate system
(4)Calculate the radius, distance, angle, coordinates and linear deviation
(5)Compare actual value with nominal value
(6)The measurement program runs automatically
2. CNC Automatic mode is supported; SPC statistics and analysis are supported
3. Support to import CAD file and annotate CAD profile.
4. Support to import PDF profile data.
5. Can export test data to the Word, Excel, AutoCAD(Optional).
6. Output multiple kinds of report format, and support user-defined report, or customize report(optional).
7. Can query and manage the test records according to object type, manufacturer, manufacturing number, inspector, submitted institution, equipment number, inspection date or effective date etc.
8. Can print multiple selected test records or test certificates from database at once time 9. User-friendly software 10. Data backup and restore


Parameters

Model No.		SJ5718-PR
Travel Range	X	0~100mm
	Z	0~300mm
Size(L×W×H)		600×350×890mm
Weight		115Kg
Profile Measurement(SJ5718-P)
Measuring Range	Z1	±30mm
	Resolution	0.001um
Indication Error	X	±(0.6+0.02L)μm（L ,mm）
	Z1	±(0.6+0.05H)μm（H ,mm）
	Standard Ball	≤±（1.2+R/15）μm（R ,mm）
	Angle error	≤±1′
Moving speed	X	0~20mm/s
	Z	0~20mm/s
Scanning Speed		0.05~5mm/s
Max Slope		Uphill 77°, downhill 88°
Straightness		≤0.5μm/100mm
Scanning Force		30mN
Roughness Measurement(SJ5718-R)
Measuring Range	Z0	±400µm(Optional:±1000μm)
	Sensor Type	Railless
	Ra Range	Ra0.1μm~Ra64μm
Scanning Force		1mN
Resolution	Z0	0.001μm
Indication Error		≤±（5nm+2.5%A）μm, A(Ra)μm
Repeatablity		≤1nm
Scanning Speed		0.05~0.5mm/s
Measurement Residual		≤0.005μm
Roughness Parameters		R roughness: Rp, Rv, Rz, Rc, Rt, Ra, Rq, Rsk, Rku, RSm, RPc, Rdq, Rdc, Rmr, Rmax, Rpm, tp, Htp, Pc, Rda, Ry, Sm, S, Rpq, Rvq, Rmq, RzJ, Rv1max, Rp1max, Rz1max, Rmr(Rz/4), maxRa, R5z, R3z, Rh, Dq, Lq, SD Key roughness: Rcore: Rk, Rpk, Rvk, Mr1, Mr2, A1, A2 Profile: Pa, Pq, Pt, Pz, Pp, Pv, PSm, Psk, Pku, Pdq, Pdc, Pc, PPc, Pvq, Pmr, Pmq, Rad, PzJ, Pmax, StpHt, TIR, Avg, Slope, Area+, Area-, Area, Profl, Edge, StpWd, Bumpht Waviness of profile: Wa, Wq, Wt, Wz, Wp, Wv, WSm, Wsk, Wku, Wdq, Wdc, Wmr, Wpc, Wc, Wh, Wmr(WZ/4) Motif: R, AR, W, AW, Rx, Wx, Wte, Nr, Ncrx, Nw, Cpm, CR, CF, CL ISO5436: Pt5436, D
Filter		2RC filtering, Gaussian filtering and Zero phase filtering
Sampling Length		0.008, 0.08, 0.25, 0.8, 2.5, 8.0 or 25mm Selectable
Evaluation Length		Auto calculation
Film Thickness Measurement	Measuring Range	60μm or less

Features

1. High precision, high stability, high repeatability: fully meet the measurement requirements of test object.
1)The world's leading high-precision linear encoder system and high-precision inductance measurement system;
2)High-precision grinding rail is made of good material with high wear resistance.
3)High-performance linear motor driving system
2. Intelligent measurement software
Thanks to friendly software interface, the operator can grasp the basic operation of the machine.
3. Measuring force
Measuring force controlled by voice coil motor driving system is continuously adjustable from 10mN to 150mN, and the resolution of measuring force is 0.2mN;
4. Intelligent protection system
Once the measuring probe collides with test object / workholder, or tensile force to measuring probe is too large during scanning process, the machine will stop scanning in order to protect measuring probe and measuring system.
5. Flexible manual control
The machine is equipped with a joystick, which can be used to position the probe before measurement. The operator can control the measuring probe to move up and down, left and right quickly without the computer.
