Thiết bị đo tốc độ vòng quay Digital Tachometers (Acquest SKS Coporation) Shimpo DT-5TXR, Shimpo DT-5TFR

Ngày đăng: 25/13/2020 - 533 lượt xem

Giá: Liên hệ

Xuất xứ:
Tình trạng:
Model:
Bảo hành:

Số lượng:

Mua hàng

Hotline:

Hotline: 0365930441

Mô tả sản phẩm
Thông số kỹ thuật
Chi tiết dòng sản phẩm
Tài liệu kỹ thuật

DT-5TXR/5TFR/5TVR Series

DT-5TXR/5TFR/5TVR Series
High-Performance Tachometers

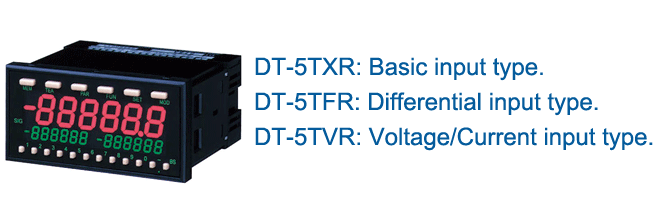

A high-performance panel-mount meter equipped with dual sub-indicators, having excellent waterproof properties (equivalent to IP66) and simple setting features. It accepts input signals from various devices such as rotary encoders, magnetic sensors, and line drivers, as well as analog input (basic input: DT-5TXR, differential input: DT-5TFR, voltage input: DT-5TVR). Provided with a memory function to store and indicate the maximum and minimum values.

Provided with various functions including calibration, memory, and prescaling
The tachometer accepts input signals from various devices such as magnetic sensors and line drivers, as well as analog input.

Simple setting
Various input/output functions can easily be added and modified, simply by inserting an optional board as a replacement. (Optional boards are sold separately.)

The dual sub-indicators enable the operator to check the upper and lower limit values at a glance

Excellent waterproof properties

Capable of accepting high-speed input at 100 kHz (DT-5TXR, DT-5TFR)
The space-saving design, DIN W96 x H48 x D92 mm (panel inside 83 mm), allows combination with a compact machine without difficulty.

Provided with a memory function to store and indicate the maximum and minimum values

DT-5TXR/5TFR

RPM or Rate Measurement Mode	The device serves as a tachometer or a speedometer, and indicates values proportional to the input.
Elapsed Time Measurement/Monitoring Mode	The device indicates values inversely proportional to the input. The values are either displayed by the hour, minute, and second, or displayed in units of 1/100 seconds. Suited for indicating the transit time on conveyor belts or the like.
Process Time Measurement Mode	The device measures the duration for which the input signal stays ON or OFF. For example, it is possible to measure the time for various processes.
Flow Rate Measurement Mode	In combination with a pulse-output flow meter, the device indicates the instantaneous flow rate according to the predetermined quantity of flow per pulse.

DT-5TXR/5TFR/5TVR

No.	Specification	Code	Description
1	Type of input	5TXR	Basic input
		5TFR	Differential input
		5TVR	Voltage/current input
2	Power source	A	AC power source (AC 85-264 V)
2	Power source	D *1	DC power source (DC 9-35 V)
3	First option *4 (terminal block input/output)	FVTR	Analog signal (voltage/current) output
		CPTR	Relay output
		TRTR	Transistor output
		RMTR	External signal input (basic) *2
		DRTR	External signal input (differential) *3
4	Second option *4 (connector output)	FVCR	Analog signal (voltage/current) output
4	Second option *4 (connector output)	BCDR	BCD output

*1: The DC power source type is available only for the DT-5TXR series.
*2: When a DT-5TVR series unit is connected to RMTR, external signal input applies.
When a DT-5TXR series unit is connected to RMTR, it serves as a ratio meter.
*3: When a DT-5TFR series unit is connected to DMTR, it serves as a ratio meter.
*4: Please note that, after purchase of the main unit, only an option
with a code ending with "R" can be connected as the first option.
(This limitation does not apply to the second option.)

Input/output form			Model code
Main unit	First option	Second option	AC power source type	DC power source type
Basic input	-	-	DT-5TXAR	DT-5TXDR
		Analog signal (voltage/current) output	DT-5TXAR-FVCR	DT-5TXDR-FVCR
		BCD output	DT-5TXAR-BCDR	DT-5TXDR-BCDR
	Analog signal (voltage/current) output	-	DT-5TXAR-FVTR	DT-5TXDR-FVTR
	Analog signal (voltage/current) output	BCD output	DT-5TXAR-FVTR-BCDR	DT-5TXDR-FVTR-BCDR
	Relay output	-	DT-5TXAR-CPTR	DT-5TXDR-CPTR
		Analog signal (voltage/current) output	DT-5TXAR-CPTR-FVCR	DT-5TXDR-CPTR-FVCR
		BCD output	DT-5TXAR-CPTR-BCDR	DT-5TXDR-CPTR-BCDR
	Transistor output	-	DT-5TXAR-TRTR	DT-5TXDR-TRTR
		Analog signal (voltage/current) output	DT-5TXAR-TRTR-FVCR	DT-5TXDR-TRTR-FVCR
		BCD output	DT-5TXAR-TRTR-BCDR	DT-5TXDR-TRTR-BCDR
Differential input	-	-	DT-5TFAR	-
		Analog signal (voltage/current) output	DT-5TFAR-FVCR
		BCD output	DT-5TFAR-BCDR
	Analog signal (voltage/current) output	-	DT-5TFAR-FVTR
	Analog signal (voltage/current) output	BCD output	DT-5TFAR-FVTR-BCDR
	Relay output	-	DT-5TFAR-CPTR
		Analog signal (voltage/current) output	DT-5TFAR-CPTR-FVTR
		BCD output	DT-5TFAR-CPTR-BCDR
	Transistor output	-	DT-5TFAR-TRTR
		Analog signal (voltage/current) output	DT-5TFAR-TRTR-FVCR
		BCD output	DT-5TFAR-TRTR-BCDR
Voltage/current input	-	-	DT-5TVAR
		Analog signal (voltage/current) output	DT-5TVAR-FVCR
		BCD output	DT-5TVAR-BCDR
	External signal input	-	DT-5TVAR-RMTR
		Analog signal (voltage/current) output	DT-5TVAR-RMTR-FVCR
		BCD output	DT-5TVAR-BCDR
	Analog signal (voltage/current) output	-	DT-5TVAR-FVTR
	Analog signal (voltage/current) output	BCD output	DT-5TVAR-FVTR-BCDR
	Relay output	-	DT-5TVAR-CPTR
		Analog signal (voltage/current) output	DT-5TVA-CPT-FVCR
		BCD output	DT-5TVAR-CPTR-BCDR
	Transistor output	-	DT-5TVAR-TRTR
		Analog signal (voltage/current) output	DT-5TVAR-TRTR-FVC
		BCD output	DT-5TVAR-TRTR-BCDR

Operational Modes	RPM or Rate Measurement; Elapsed Time Measurement/Monitoring; Process Time Measurement; Flow Rate Measurement
Options	BCD output; Comparator output; Analog output 0-1 V/1-10 V; Analog output 1-5 V; Analog output 4-20 mA
Input Signals	Contact input; Open collector input; Voltage pulse input (square wave); Voltage pulse input (sine wave)
Power Source	AC85-264 V / DC9-35 V
Functions	Prescaling function; Calibration function; Auto-zero function; Sub-indicators; Moving-average indication; Sensor supply voltage 12V

Thiết bị đo tốc độ vòng quay Digital Tachometers (Acquest SKS Coporation) Shimpo DT-5TXR, Shimpo DT-5TFR

Mô tả sản phẩm

Thông số kỹ thuật

Chi tiết dòng sản phẩm

Tài liệu kỹ thuật

DT-5TXR/5TFR/5TVR Series
