Profile Projector Easson EP-1 1510, Easson EP-1 2010, Easson EP-1 2515

EP-1 high precision optical profile projector Provides accurate 2D measurement for all common geometric features such as circle, lines, angies and etc, All measured results can be printed or transferred to computer for futher processing.

EP-1 optical profile projector is designed for all circital dimensions measurement in mould & die making, form tools making, screw manfactring, gear manufacturing and etc.

Constructed with top class components and under high standard of workmanship, EP-1 achieves very high measurement accuracy, the axial measurement accuracy is (3+L/100)um, where L is the measured length in mm: the total contour distortion is less than 0.08%.

High quality lighting & optical system provides brilliant images of expectional quality.

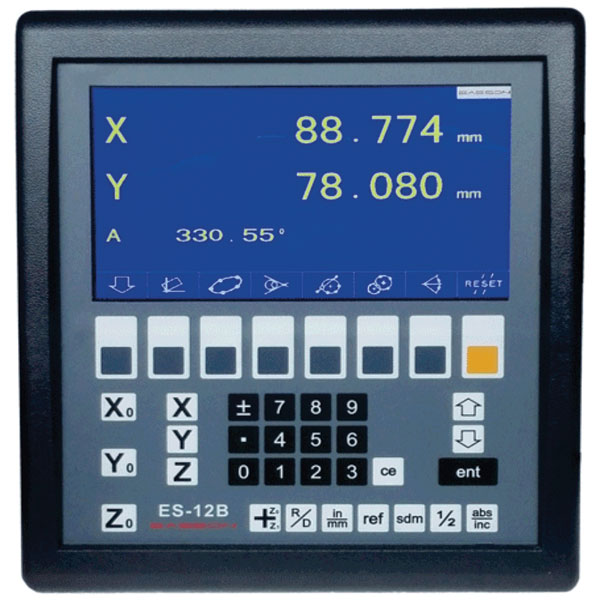

EP-1 equipped with ES-12 1um resolution high accuracy measuring system which provides comprehensive & easy to use geometric measurement functions.

【Features of EP-1 Optical Profile Projector】

【High stability machine casting】
To avoid deformation caused by intemal stless of metal casting, in additional to normal intemal stress release process by tempering, all EP-1’s castings are further stess release process to achieve high dimensional stabillty and hence to achieve long lasting accuracy.

【High precision linear guideay】
The high precilion linear guideways are used in all XYZ Axes movement to provide high straightness movement and hence to achieve high measurement accuracy.

【Robust friction transmission system】
To avoid back-lash problem in normal lead screw transmission system, rod base friction transmission system are used in EP-1’s XY axes movements to provide excellent smooth, sensitive and back-lash free positioning for easy & precise measurement.

【ES-12 Measuring System Specificaltions】

Axis	X,Y axes linear transducer
	A axis rotay encoder
Resoultion	0.001mm(X,Y axes) / 0.01deg.(A axis)
Coordinates	X,Y and Ploar Coordinates Systems
Memory	99 featres memory ;10 coordinates memory
Error Comp	Linear and non-linear error compensation
I/O Interface	RS-232C I/O interface
Geometric Measurement Functions	* Basic measurement functions: point, line, angle, circle, ellipse, distance, angle, intersection * Pattern measurement function: Midpoint, circle tangent lines, line circle intersection, circles intersection, midline * language can be setting to English, Italy, German, French, Portuguese, Spanish, Chinese, Czech * Words and background color of screen can be setted

【EP-1 Technical Specifications】

【Accessories】

ES-12 Digital Readout           Precision Lens (10X, 20X, 50X)             Rotary Worktable

【Control Panel 】: includes Power (On/Off); Direct Light Key: High; Direct Light Key: Low; Reflective Light Key;

【Printer】
