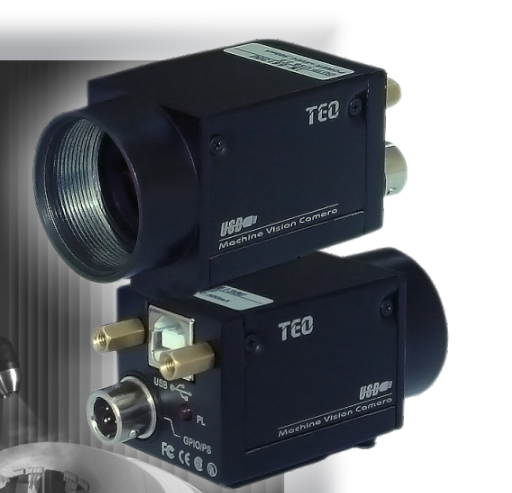

TM-B6040U
|
|
Sensor
|
Diagonal 5.35mm,1/3-inch CMOS
4.51mm(H) x 2.88mm(V)
|
|
Unit cell size(um)
|
6.0um(H) x 6.0um(V)
|
|
Effective pixels
|
752（H）x 480(V)
|
|
Frame rate
|
50fps;max:60fps at full resolution
|
|
Exposal mode
|
Progressive
|
|
Signal process
|
12-bit process
|
|
Image data output
|
8、12、16、and 24-bit digital data
|
|
S/N ratio
|
50dB
|
|
Dyn amic range
|
＞72.0dB
|
|
Sensitivity
|
4.1V/lux-sec(550nm)
|
|
Gain control
|
Automatic/manual/one-push modes,programmable via software
-2.6dB to 24dB in 0.04dB increments
|
|
Shutter speed
|
Automatic/manual/one-push modes,programmable via software
0.03ms to 32s
|
|
Image output
|
USB 2.0 out ,480Mb/s
|
|
Programmable control
|
Image size,contrast,brightness,gain,expos ure time
|
|
Software function
|
Image display,image processing,video
|
|

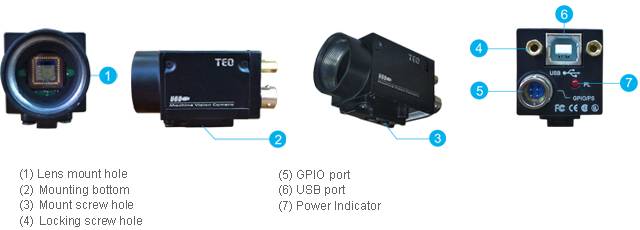

General purpose I/O ports I/O
|
4-pin GPIO connector for power,trigger,strobe,PWM,and serial I/O
I opto-isofated input,I opto-isolated output,2 bi-directional I/O pins
|
|
Software support
|
Measurement software,SDK,OCX,control-file;support DSHOW,labview,TWAIN port
|
|
Operation software
|
VISTA,WIN7,WIN XP;WIN2000 Full support
for 32-bit,64-bit operating system
|
|
Lens mount
|
C mount
|
|
Power consumption
|
Appro x2.3W ; USB2.0 supply+5.0VDC+10%
|
|
Operating temperature
|
-10℃ to + 50℃; 0℃ to + 40℃(recommended)
|
|
Dimension
|
29.0(L)×29.0(W)×80.0(H)mm
|
|
Weight
|
approx 85g
|
