Model |

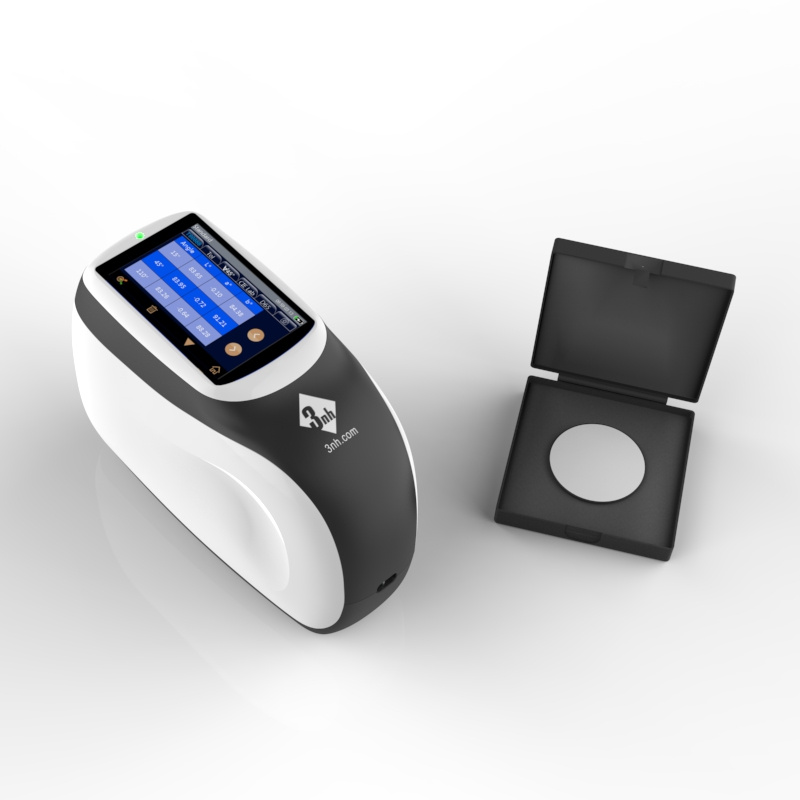

MS3012 |
|
Measurement Geometry |
12 measurement angles (7 illumination sources, 2 receivers) |
|
Measure Angle |
45° Receiver：
45as-15°,45as15°,45as25°,45as45°,45as75°,45as110°
15°Receiver：
15as-45°,15as-15°,15as15°,15as-30°,15as45°,15as80°
Conform to the standards：ASTM D 2244,E 308,E 1164,E 2194, E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4
SAE J 1545 |
|
Application |
Provide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products |
|
Light Source |
Full spectrum LED light source with blue enhancement |
|
Lamp Life |
5 years, 3 million times measurements |
|
Spectrophotometric Mode |
Concave Grating |
|
Sensor |
256 Image Element Double Array CMOS Image Sensor |
|
Wavelength Range |
400nm-700nm |
|
Wavelength Interval |
10nm |
|
Measurement Range |
0~600% |
|
Semiband Width |
10nm |
|
Measuring Aperture |
Illumination size Φ23mm / Measuring spot 9X12mm (Customized: Illumination size Φ10mm / Measuring spot 6X8mm) |
|
Color Space |
CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99 |
|
Color Difference Formula |
ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175 |
|
Other Colorimetric Index |
Flop Index, Int-Em |
|
Observer Angle |
2°/10° |
|
Illuminant |
D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
|
Display |
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color simulation, Sample effect value, Effect difference value |
|
Measuring Time |
Approx. 1 second for one angle
Approx. 12 seconds for all angles |
|
Repeatability |
Spectral reflectance: Standard deviation within 0.08%
Chromaticity value: ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
|
Reproducibility |
ΔE*<0.10,avg on the gray tile of BCRA tile set
ΔE*<0.25,avg on the color BCRA tile set |
|
Inter-instrument Error |
0.18ΔE*00(avg on reference Series II BCRA tile set) |
|
Effect Parameters |
Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV) |
|
Effect Measurement |
6 angles Sparkle Grade(SG),Color Variation(CV):15as-45°,15as-30°,15as-15°,15as15°,15as45°,15as80°
15d Diffuse coarseness(DC) |
|
|
|
|
Effect Repeatability |
Sparkle Grade(SG) Short-term repeatability: 0.12% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)
Diffuse coarseness(DC) Short-term repeatability:e0.09% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration) |
|
Effect Reproducibility |
Sparkle Grade(SG) Reproducibility: 1.9% (10 times standard deviations)
(avg on reference Series II BCRA tile set)
Diffuse coarseness(DC) Reproducibility: 1.4% (10 times standard deviations)(avg on reference Series II BCRA tile set) |
|
Trigger mode |
Pressure sensing trigger, button trigger, software trigger |
|
Measuring Mode |
Single measurement, average measurement (1-99), continuous measurement (1-99) |
|
Locating Mode |
Color camera preview |
|
Dimension |
L*W*H=195X83X128mm |
|
Weight |
About 1Kg |
|
Power |
lithium-ion battery, 3.7V,3200mAh, Continuous test 6000 times within 8 hours of full charge |
|
Display |
3.5-inch TFT color LCD, Capacitive Touch Screen |
|
Interface |
USB, Bluetooth 5.0 |
|
Data Storage |
1000 pcs Standards,4000 pcs Samples |
|
Language |
Simplified Chinese, Traditional Chinese, English |
|
Operating Environment |
10℃ to 50℃, humidity does not exceed 85%, no condensation |
|
Storage Environment |
-20℃ to 50℃, humidity does not exceed 85%, no condensation |
|
Calibration |
Built-in white board parameters, external white board, black light trap, color board |
|
Calibration Interval |
4 hours,8 hours,24 hours,Startup calibration |
|
Standard accessories |
Power Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband |
|
Optional Accessory |
Micro-printer |
|
Notes |
Technical parameters are for reference only, subject to actual sales products.
|
