Name |
Circle Marker Infrared Thermometer |
Dual Point Laser Infrared Thermometer |
|
Cat. No. |
8213-00 |
8214-00 |
|
Model |
SK-8130 |
SK-8140 |
|
Measuring Range |
-50 to 500°C |
Accuracy
(emissivity: 0.95 in 18 to 28°C) |
±1% rdg. at above 200°C
±2°C at 1 to 199°C
±5°C at below 0°C |
Temperature Drift
(emissivity: 0.95) |
less than ±0.1%/°C rdg. at above 200°C
±0.2°C /°C at below 200°C |
|
Repeatability |
less than 1°C at above 30°C (emissivity at 0.95 in 18 to 28°C) |
|
Response Time |
approx. 1.5 second (90% response) |
|
Emissivity |
Adjustable from 0.10 to 1.00 in 0.01 steps |
|

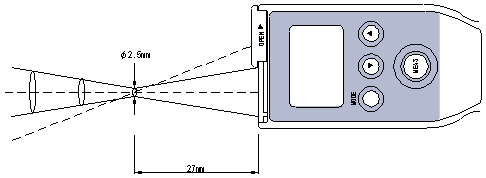

Distance Coefficient |
D:S = approx. 15:1 (D: distance, S: spot size) |
Measuring distance: approx. 27mm Spot size: ø2.5mm |
|
Detector |
Thermopile |
|
Wavelength |
8 to 14μm |
|
Targeting System |
Circle Laser Marker |
Dual Point Laser Marker |
Wavelength: 650nm
Laser output: less than 1mW(Class II Laser) |
|
Functions |
Auto power-off, Auto backlight |
|
High and low temperature alarm |
|
PEAK/VALLEY selectable mode (*1) |
|
Operating Ambient |
0 to 50°C for temperature
Less than 85% rh for humidity (no condensing) |
|
Waterproof property |
JIS C 0920 equivalent to IPX4 |
|
Power requirement |
3VDC : “AA” (LR6) size Alkaline battery × 2
Consumption current: 120 mA |
|
Battery life |
approx. 16 hours with use of laser and new Alkaline batteries |
|
Dimensions |
(W) 44 × (H) 152 × (D) 27.5 mm |
|
Weight |
approx. 140g (including batteries) |
|
Materials |
Main body: Polycarbonate
Lens: Silicon |
|
Accessories |
Neck strap, “AA” (LR6) size Alkaline battery × 2 |
