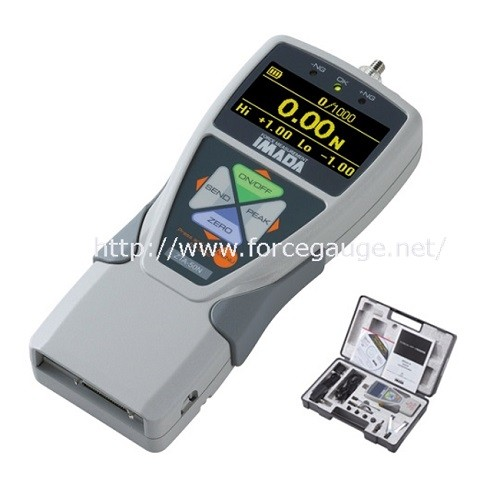

MÁY ĐO LỰC ĐIỆN TỬ IMADA ZTS SERIES

Ngày đăng: 07/39/2018 - 841 lượt xem

Giá: Liên hệ

Xuất xứ:
Tình trạng:
Model:
Bảo hành:

Số lượng:

Mua hàng

Hotline:

Hotline: 0365930441

Mô tả sản phẩm
Thông số kỹ thuật
Chi tiết dòng sản phẩm
Tài liệu kỹ thuật

Là loại máy đo lực điện tử
các model : ZTS-2N, ZTS-5N, ZTS-20N, ZTS-50N, ZTS-200N, ZTS-500N. ZTS-1000N
Hãng sản xuất: IMADA - Japan

Specifications for Standard Model Digital Force Gauge ZTS series

Model	ZTS
Feature	Standard model with high performance and usability
Accuracy	+/-0.2%F.S.+/-1digit
Unit of measurement (*1)	N, kgf, lbf (*2)
Display	4-digit organic EL
Display update	16 times / sec.
Sampling rate	2000 data / sec at maximum
Battery	8 hours (2 hours charge)
Safe overload rating	Approx.200%F.S.
Operating environment	Temperature: 0 to +40 degree Celsius, Humidity: 20 to 80%RH
Function	Customized display (header and footer), Peak hold (tension and compression), Internal 1000 points data memory, Comparator (judgment of OK or NG), Reversible display, Sign inversion, Zero clear timer, +NG alarm, Off timer (auto power off), Dumping,Time display, Setting lock
Output	USB, RS232C, Mitutoyo digimatic (*3), 2 VDC analog output (D/A), Comparator 3 steps (-NG/OK/+NG), Overload alarm
Overload warning	Approx.110%F.S. (Warning message and alarm )
External connecting switch	SEND (a point of contact holding), Zero reset, Peak ON/OFF setting
Weight	From 2N to 1000N model: Approx.490g (*4)
Dimensions	Please refer to dimensions.
Accessory	AC adapter, Inspection certificate, CD driver (including simple software for data logging), Attachments (The set of attachments varies according to range.), USB cable,Carrying case.

*1 These are the specifications for International model. Please note that this unit is different from Japanese domestic model and international one.
*2 [N indication] The indication of 2N and 5N models is mN or N. The indication of 1000N,2500N and 5000N model is N or kN.
[kgf indication] The indication of 2N and 5N models is gf.
[lbf indication] The indication of 2N and 5N models is ozf.
*3 Not always available for Mitutoyo digimatic products.
*4 Weight is slightly different according to range.

Model List for Standard Model Digital Force Gauge ZTS series

Model	Range	Display	Resolution	Thread
ZTS-2N	2N (200gf)	2.000N/2000mN (200.0gf)	0.001N/1mN (0.1gf)	M6
ZTS-5N	5N (500gf)	5.000N/5000mN (500.0gf)	0.001N/1mN (0.1gf)
ZTS-20N	20N (2kgf)	20.00N (2.000kgf)	0.01N (0.001kgf)
ZTS-50N	50N (5kgf)	50.00N (5.000kgf)	0.01N (0.001kgf)
ZTS-100N	100N (10kgf)	100.0N (10.00kgf)	0.1N (0.01kgf)
ZTS-200N	200N (20kgf)	200.0N (20.00kgf)	0.1N (0.01kgf)
ZTS-500N	500N (50kgf)	500.0N (50.00kgf)	0.1N (0.01kgf)
ZTS-1000N	1000N (100kgf)	1000N/1.000kN (100.0kgf)	1N/0.001kN (0.1kgf)

lbf indication is also possible.
