Waterproof Digital Thermometer Model SK-270WP (with S270WP-01 probe)

HACCP function is equipped
When the temperature of measuring object reaches the value to be set, the timer automatically starts. When it reaches the set time, the buzzer sounds and LED lights.
Three settings (Temp/Time) are available.

Serial number and calibration date (year and month) are indicated on LCD when the power is turned ON

There is no seal sticking to the unit to prevent contamination such as peeled seal at the time of measurement.
The serial number of the unit and the traceable calibration date are displayed when the power is turned on. It is easy to manage records on site

Note: Only the unit calibrated at our laboratory is available to indicate calibration date. User cannot input the calibration date.

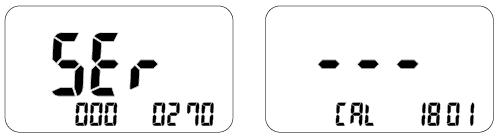

Display example:

Serial number Calibration date (year and month)

Resistant body to water, impact, heat and alcohol
Material of the body is polycarbonate resin that offers resistance to high temperature, impact and alcohol in comparison with ABS resin so far use.
The body conforms to JIS C 0920 IP67 and it is available to wash the body in running water and wipe with alcohol. (when the unit is connected to a probe)
* Material of display section and key pad is PET resin.

Durable body and easy-to-read display
Rubber around the side of the reduces the damages due to falling. The slanted back improves the visibility of display.

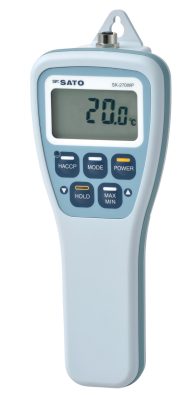

Front

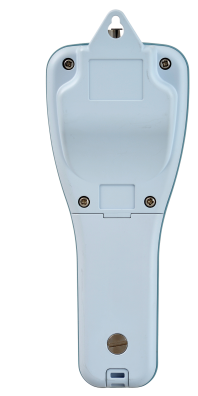

Rear

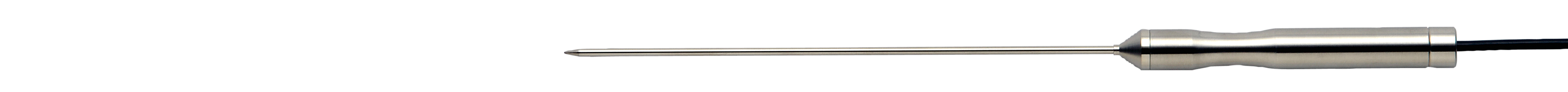

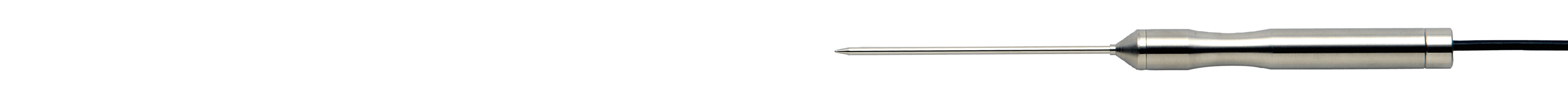

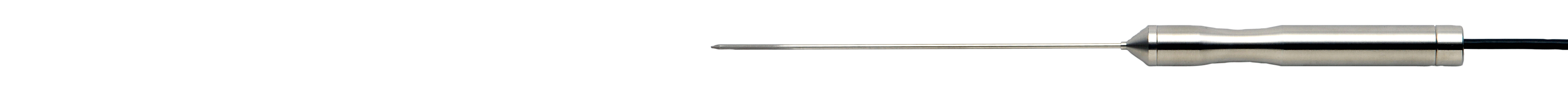

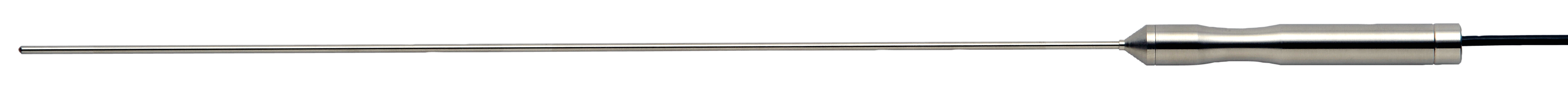

Optional probes

Various probes are provided for variety of applications.
Probes can be interchangeably used with a main unit.

Available to issue the calibration certificate, traceability diagram that require for he management of measuring instrument under ISO and so on.

SK-270WP Waterproof Digital Thermometer Specifications

Model	SK-270WP
Display range	-50.0 to 300.0°C
Display accuracy	±(0.1+1digit) at -40.0 to 200.0°C ±5digits at other range Measuring ambient: 0 to 40°C
Resolution	0.1°C
Display sampling	approx. 0.5 to 1 sec. (when temperature changes a lot, the sampling time is 0.5 sec. and it is calm, it automatically changes to 1 sec.)
Display functions	HOLD, MAX, MIN, HACCP (temp./time), buzzer (70 dB), Auto power-off, low battery mark
Degree of protection	JIS C 0920 IPX6 When the unit and a probe are connected
Applicable standard	EN61326-1:2013
Operation ambient	-10 to 60°C, less than 80%rh (no condensing )
Power requirements	2 AAA size alkali batteries
Battery life	Approx. 1000 hours (at normal measurement) Approx. 500 hours when buzzer function is active
Materials	Body: PB (polycarbonate) resin Display section: Key switch: PET resin
Dimensions	approx. (W)70×(H)171×(D)40mm (exclusive of connector)
Weight	approx. 55g (inclusive of batteries)
Accessories	Standard probe S270WP-01 1 pc. vinyl cover 1 pc. neck strap 1 pc., AAA size alkali battery 2 pcs. manual

Specifications of optional probes

Cat. No.		No.8079-01	No.8079-02	No.8079-03	No.8079-04	No.8079-05	No.8079-06
Model		S270WP-01	S270WP-02	S270WP-03	S270WP-04	S270WP-05	S270WP-06
Measuring range		-40.0 to 250.0°C					-40.0 to 40.0°C
Accuracy		-40.0 to -10.0°C: ±1.5°C - 9.9 to 105.0°C: ±0.5°C 105.1 to 150.0°C: ±0.7°C 150.1 to 199.9°C: ±1.0°C 200.0 to 250.0°C: ±1.5°C					-40.0 to -30.1°C: ±1.3°C - 30.0 to -20.1°C: ±1.0°C - 20.0 to -10.0°C :±0.5°C - 9.9 to 40.0°C: ±0.3°C
Sensing element		Thermistor
Waterproof rate		JIS C 0920 IPX7 (when the probe is connected with the main unit)
Shape of stem end		Point end		Round end	Point
Materials	Stem	SUS304				SUS316	SUS304
	Grip	SUS303
	Cord	PVC
Dimensions	Stem	φ3×L100mm	φ3×L200mm	φ3×L400mm	φ2×L150mm	φ2×L45mm + φ3×L55mm	φ3×L100mm
	Grip	φ15×L120mm
	Cord	approx. 0.7m
Weight		123g	126g	130g	123g	123g	123g
Accessories		Test result

IPX7: Protect against effect of temporary immersion 1m in water under the normal temperature
These optional probes can not be used with SK-250WPII series digital thermometers

Dimensions of Optional probes

No.8079-01 Standard probe S270WP-01 Sensing part: φ3×L100mm (point end)
