Máy đo độ ẩm, nhiệt độ Sato SK-250WPII-R

Ngày đăng: 12/25/2019 - 329 lượt xem

Giá: Liên hệ

Xuất xứ:
Tình trạng:
Model:
Bảo hành:

Số lượng:

Mua hàng

Hotline:

Hotline: 0365930441

Mô tả sản phẩm
Thông số kỹ thuật
Chi tiết dòng sản phẩm
Tài liệu kỹ thuật

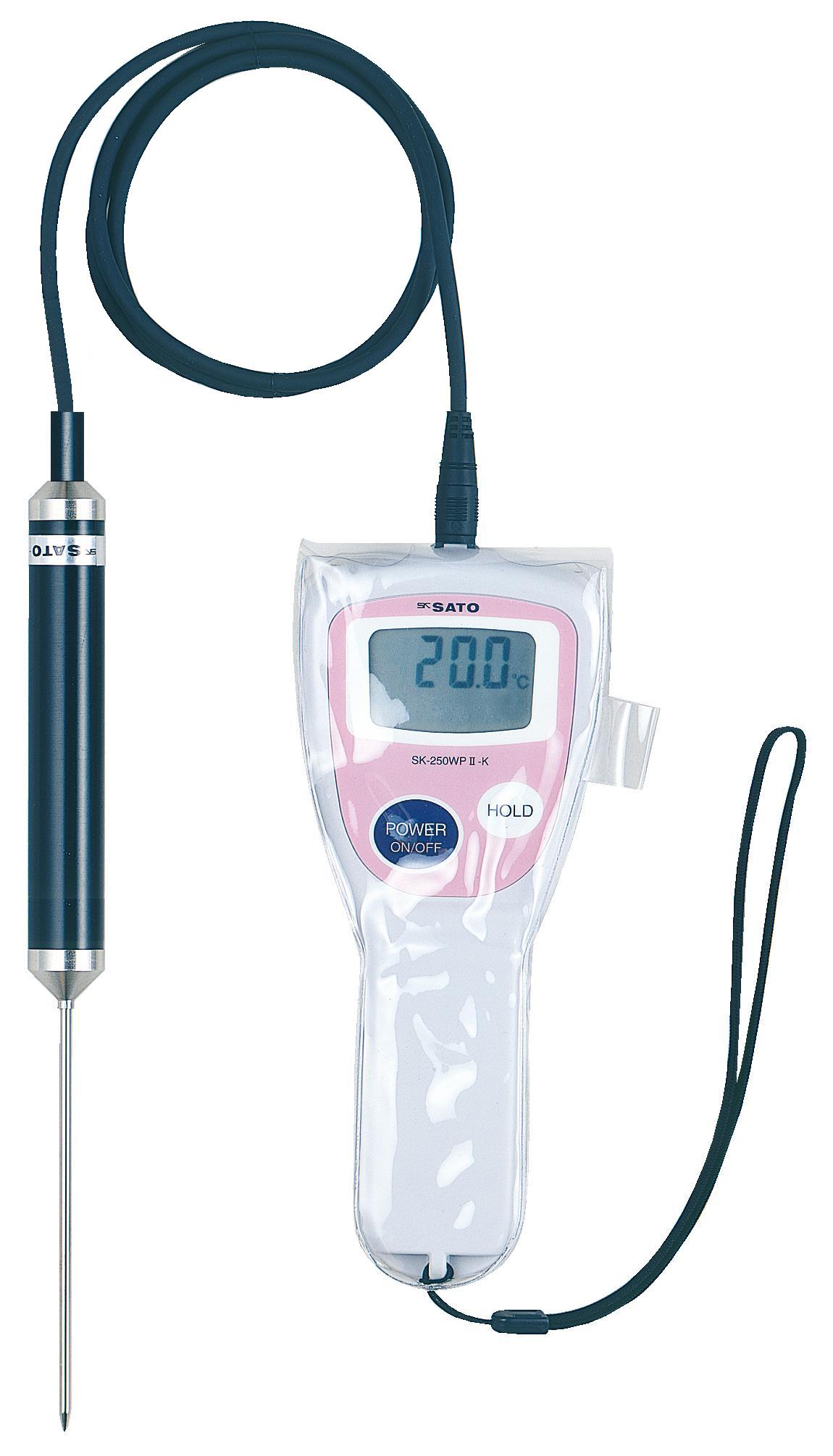

Waterproof Digital Thermometer SK-250WPII-R (w/ memory function)

Handy type waterproof digital thermometer. Suitable for temperature control of food. This model comes with clock and data recording functions. 10 optional probes are available for various applications.

MUTUAL FEATURES

Main unit is waterproof construction conforming to IP-X6 rated (*1) -- protected against strong jets of water - limited ingress permitted and probes are IP-X7 rated (except SWPII-11).
They will not be affected in function at the touch of wet hands or with splash water
Measured value can be held. (HOLD function)
Power will automatically turn off after 60 minutes (AUTO-POWER OFF function)
Low battery mark protects the power insufficient

(*1): IP X6 Waterproof Properties

Level 6: Protected against strong jets of water -- limited ingress permitted

MUTUAL SPECIFICATIONS

Model	SK-250WPII Series Waterproof Digital Thermometers
Display range	-55°C to 305°C
Measuring range	-50°C to 250°C (Measuring range is different depending on the probe connected)
Probes connected	SK-SWPII series probes (Thermistor)
Accuracy (body)	±(0.1°C + 1 digit) at -9.9 to 199.9°C ±(1°C + 1 digit) at other than above
Waterproof properties	conforming to JIS C 0920 Protection class 6 (equivalent to IP X6)
Operation ambient	0 to 50°C
Display sampling	about 1 sec.
Power requirements	3VDC ("AAA" (LR03) size battery x 2)
Battery life	about 1000 hours continuous (by using alkaline batteries)
Dimensions	71 (W) x 170 (H) x 36 (D) mm
Weight (body)	approx. 145 g (inclusive batteries)
Materials	ABS resin
Standard accessories	SWPII-01M probe with test result, hand strap, vinyl cover, "AAA" size alkaline battery x 2

FUNCTIONS OF EACH MODEL

Cat	8068-00	8062-00	8064-00	8066-00
Model	SK-250WPII-K	SK-250WPII-N	SK-250WPII-T	SK-250WPII-R
Functions	Data Hold
	Auto-Power Off
	----	MAX/MIN (minimum/ maximum memory data,
	----		Clock display (24h )
	----		Timer function
	----		Upper and lower limits
	----			Memory function (100 data)

SWPII SERIES OPTIONAL PROBES

No. 8071-01 SWPII-01M Standard probe Range: -40 to 250°C (waterproof) Ø 3 x L100mm (Point end) w/ 1m cord	No. 8072-01 SWPII-02M High sensitive probe Range: -15 to 250°C Ø 3 x L100mm (Point end) w/ 1m cord
No. 8077-50 SWPII-11 Surface temperature probe Range: 25 to 200°C Sensing part: Ø9mm Grip: Ø12 x L105mm w/ 1m cord	No. 8074-01 SWPII-04M Penetration probe Range: -15 to 250°C (waterproof) Ø 2 x L150mm (Point end) w/ 1m cord
No. 8075-01 SWPII-05M Long stem probe (waterproof) Range: -15 to 250°C Ø 3 x L400mm (Round end) w/ 1m cord
No. 8076-01 SWPII-06M Tapered stem probe Range: -40 to 250°C (waterproof) Ø2 x L45 + Ø3 x L55mm Ø18 x L100mm w/ 1m cord

Stainless steel grip type
No. 8077-10 SWPII-07 Standard probe Range: -40 to 250°C (waterproof) Ø 3 x L100mm (Point end) w/ 1m cord	No. 8077-20 SWPII-08 Long stem probe (waterproof) Range: -15 to 250°C Ø 3 x L400mm (Point end) w/ 1m cord
No. 8077-30 SWPII-09 General purpose probe Range: -40 to 250°C (waterproof) Ø 3 x L200mm (Point end) w/ 1m cord	No. 8077-40 SWPII-10 Penetration probe Range: -15 to 250°C (waterproof) Ø 3 x L150mm (Point end) w/ 1m cord

SWPII SERIES OPTIONAL PROBES

Model Name	SWPII-01M	SWPII-02M	SWPII-04M	SWPII-05M	SWPII-06M	SWPII-11
Cat. No.	8071-01	8072-01	8074-01	8075-01	8076-01	8077-50
Sensor	Thermistor
Range	-40 to 250°C	-15 to 250°C	-15 to 250°C	-15 to 250°C	-40 to 250°C	25 to 200°C
Accuracy
-40 to -16°C	± 2°C	----			± 2°C	----
-15 to -10°C	± 2°C	± 1°C			± 2°C	----
-9.9 to -0.1°C	± 1°C					----
0.0 to 40.0°C	± 0.6°C	± 0.3°C	± 0.6°C			± 0.8°C *
40.1 to 105.0°C	± 0.7°C					± 1°C
105.1 to 145.0°C	± 1°C					± 1.5°C
145.1 to 250°C	± 2°C					± 2°C *
Waterproof property	IP X7					----
Materials (Grip)	Polybutylene Terephthalate (PBT) resin					PVC resin Polyacetal resin Teflon Aluminum
(Sensing part)	SUS304				SUS316	Copper Ni plating
Weights(approx.)	100g	100g	99g	105g	99g	50g

* The measuring range of SWPII-11 is 25 to 200°C

Model Name	SWPII-07	SWPII-08	SWPII-09	SWPII-10
Cat. No.	8077-10	8077-20	8077-30	8077-40
Sensor	Thermistor
Range	-40 to 250°C	-15 to 250°C	-40 to 250°C	-15 to 250°C
Accuracy
-40 to -16°C	± 2°C	----	± 2°C	----
-15 to -10°C	± 2°C	± 1°C	± 2°C	± 1°C
-9.9 to -0.1°C	± 1°C
0.0 to 40.0°C	± 0.6°C
40.1 to 105.0°C	± 0.7°C
105.1 to 145.0°C	± 1°C
145.1 to 250°C	± 2°C
Waterproof property	IP X7
Materials (Grip)	SUS303
(Sensing part)	SUS304
Weights(approx.)	140g	145g	143g	139g
