Máy đo độ ẩm, nhiệt độ Sato SK-1260

Waterproof Digital Thermometer SK-1260 with memory and alarm functions

SK-1260 digital thermometer can store the measured data in memory and the stored data can be printed on an optional printer.

Enhanced model of the bestselling SK-1250MC digital thermometer packed with various new features.

FEATURES

• Measurement values can be stored in memory with a simple operation.
  • The memory can store up to 180 measurement values in the manual mode.
  • The memory can store up to 120 measurement values in the automatic mode.

• Print function
  • The stored data in the memory can be printed out with an optional printer.
• Setting of upper and lower limits is available.
  • If the temperature reaches the upper limit or the lower limit to be set, the warning buzzer sounds and "V" flashes on the panel.
• Waterproof rate
  • Conforming to JIS C 0920 Protection Class 4: equivalent to IPX4
  • No adverse effects of water splashes from any direction

• Both inputs of Thermistor and K Thermocouple are available only from us
• Various optional probes for a wide variety of applications
• A soft pouch with neck strap is provided as standard accessories

SPECIFICATIONS

OPTION

Optional Printer Model DPU-414
By connecting the optional printer with the SK-1260 via an exclusive cable, the data stored in memory can be printed out by simple key operation.
Power requirements	AC adapter (100 to 240VAC)  or built-in battery
Operating ambient	0 to 40°C
Dimensions	(W)170×(H)66.5×(D)160 mm
Weight	approx. 690 g
Standard accessories	printing paper 1 roll (about 28m), cable for printer

Optional Probes

* The greatest feature of SK-1260 is that boths of thermocouple and thermister probes are usable.  You can select the suitable probes to your applications and measurement purpose among 23 kinds of K type thermocouple probes and 6 kinds of thermistor probes, especially, 11 kinds of surface temperature probes are provided.

* Cord used is a super flexible type which resists oil and can be used in a low temperature state.

K Type Thermocouple probes
SK-S100K Standard type probe. Range:-100 to 300°C. Use for semisolid, viscosity and liquid. Ø2.3 x 150mm w/1.1m cord	SK-S100WK Waterproof type penetration probe. Range: -100 to 300°C. Suitable for food industries Ø2.3 x 150mm w/1.1m cord
SK-S101K General purpose probe. Range: -100 to 700°C. Ø3.2 x 250mm w/1.1m cord
SK-S102K High temperature probe. Range: 0 to 800°C. Ø4.8 x 500mm w/1.1m cord
SK-S103K Asphalt temperature probe. w/ stainless steel grip. Range:0 to 300°C. Ø5 x 250mm w/1.1m stainless heat resistance cord	SK-S104K High sensitivity probe. Range: -100 to 300°C. Use for viscosity and liquid. Ø1 x 1000mm w/1.1m cord
SK-S105K Duplex wire probe (stainless steel shield wire) Range: -100 to 300°C. Ø0.65 x 10m w/0.3m stainless heat resistance cord	SK-S106K Asphalt temperature probe w/ resin grip. Range: 0 to 300°C. Ø5 x 250mm w/1.1m cord

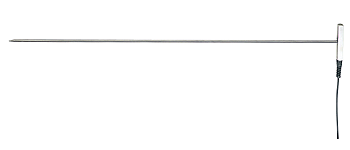

SK-S107K High temperature probe(sensor: inconel alloy) Range:0 to 1000°C. Ø4.8 x 1000mm w/1.1m cord (Option : Range : 0 to 1250°C :Ø8.0 x 1000mm)
SK-S108K Compost temperature probe. Range:0 to 300°C. Ø8 x 900mm w/1.1m cord.	SK-S109K Asphalt temperature probe. Range:0 to 300°C. Ø5 x 250mm w/1.1m cord.

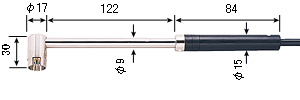

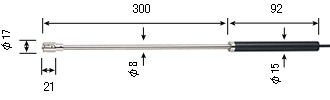

SK-S301K Surface temperature probe. Range:0 to 600°C. Ø25 x 40mm w/1.1m cord.	SK-S302K Surface temperature probe. Range:0 to 600°C. Sensing part Ø17 x 21mm w/1.1m cord.

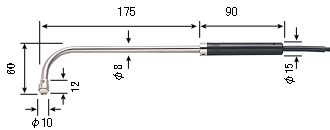

SK-S303K Surface temperature probe right angle type. Range:0 to 800°C. Sensing part Ø10 x 12mm w/1.1m cord.	SK-S304K Surface temperature probe. Range:0 to 300°C. Mount on flat surface with screws. 14 x 17 x t0.6mm w/3m heat resistance cord.

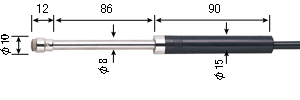

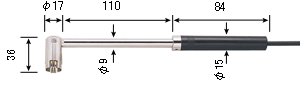

SK-S305K Surface temperature probe (tilting type in 90o) Range: -30 to 500°C. Sensing part Ø17 x 36mm w/1.1m cord.	SK-S306K Point surface temperature. Range: -30 to 250°C. Sensing part Ø10 x 12mm w/1.1m cord.
SK-S307K Surface temperature probe. Range: -30 to 400°C. Sensing part Ø17 x 25mm w/1.1m cord.	SK-S308K L shape type surface temperature probe. Range:-30 to 600°C. Sensing part Ø17 x 30mm w/1.1m cord.

SK-S401K Temperature probe for curved surface. Range: 0 to 250°C. Ø30 x 35 x 60mm w/1.1m cord

SK-S402K Surface temperature probe.(roller type) Range: 0 to 300°C. Sensing part: 25 x 50 x 25mm Grip: Ø15 x 90mm w/1.1m cord

SK-S403K Surface temperature probe.(w/ magnet) Range: 0 to 200°C. Sensing part: Ø30 x 12mm Grip: Ø15 x 50mm w/1.1m cord

Thermistor Probes
SK-S100T Standard type probe. Range:-30.0 to 199.9°C. Use for semisolid, viscosity and liquid. Ø2 x 100 mm w/1.1m cord.	SK-S101T Penetration probe. Range:-30.0 to 199.9°C. Use for semisolid, viscosity and liquid. Ø3 x 100mm w/1.1m cord.
SK-S101WT Waterproof type penetration probe. Range:-30.0 to 199.9°C. Suitable for food industry Ø3 x 120mm w/1.1m cord.	SK-S102T Water temperature probe. Range:-30.0 to 100°C. Water pressure resistance type. Ø17 x 123mm w/10m cord.
SK-S103T Rectum temperature probe. Range:30.0 to 50.0°C. Ø3 x 110mm w/1.1m cord	SK-S201T Air temperature probe used in offices and warehouses. Range:-30.0 to 150°C Ø5 x 100mm w/1.1m cord.
