Máy đo 3D BIG SP Series Vision Measurement Machine Easson SP760, Easson SP970, Easson SP1210, Easson SP1512, Easson SP2015

The parallel light system is to make the tridimensional edge profile more clear. Multi visual angle can be provided and make the edge more distinct.

Programmable adjustable LEDs: To select a proper illumination source can make the measurement maintain peak performance. And the entire illumination source can be controlled automatically.

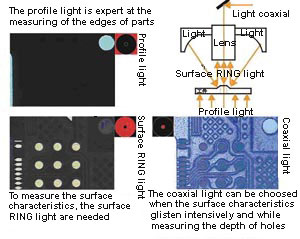

Different kinds of illumination source can be used to meet multifarious demands of measuring.

Professional industrial lens can continuous change the optical magnification

Programmable adjustable auto focus lens: Video magnification continually changes from 22X-145X can be fulfilled by programmable adjustable auto focus lens. The precise repeatability of orientation can ensure the use of lens without more times image calibration. No need to do image calibration again while changing the magnification.

The contact probe: The contact probe can be used to do three-dimensional measurement. Moreover, it can do non-contact measurement without any other setting by using the same software.

The solid geometrical vision of parts has been constructed by the overlap measuring of probe and image.

We choose the linear scale which has been upgraded to improve the measuring accuracy.
The Airscape Function: The software will capture the part automatically, and then just click the position to be measured and our machine will move to the position automatically. It can save the time to search the position on the part to improve the efficient.

Click the picture to orientated and measure the real part
