Model: Obishi FA101, FA102, FA103, FA104, FA105, FA106, FA107, FA108, FA109, FA110, FA111, FA112, FA113, FA114
Model: Obishi FB101, FB102, FB103, FB104, FB105, FB106, FB107, FB108, FB109, FB110, FB111, FB112, FB113, FB114

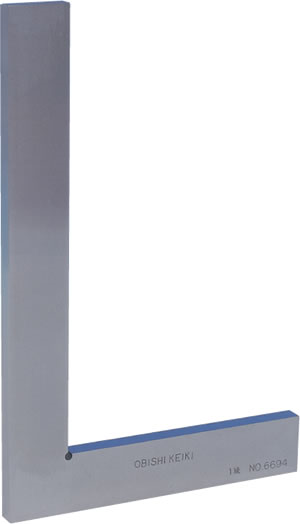

Flat Type Parallel Square
-
Accuracy is JIS Standard Grade1, Hardened.
-
Used for Parallel measurement.
-
Use for measurement of tools perpendicularity, and squareness of parts attached using jigs, products squareness, etc
Grade 1 Hardened.
|
Code No. |
Nominal
Measurement |
Measurement
(H×L×W×tmm) |
Squareness
(μm) |
Mass
(kg) |
|
FA101 |
75 |
75×50×18×3 |
±14 |
0.1 |
|
FA102 |
100 |
100×70×20×4 |
±15 |
0.1 |
|
FA104 |
150 |
150×100×25×5 |
±18 |
0.2 |
|
FA105 |
200 |
200×130×25×8 |
±20 |
0.5 |
|
FA107 |
300 |
300×200×30×8 |
±25 |
0.9 |
|
FA108 |
400 |
400×200×40×8 |
±30 |
1.5 |
|
FA109 |
500 |
500×300×40×8 |
±35 |
2.1 |
|
FA110 |
600 |
600×325×50×11 |
±40 |
4.0 |
|
FA111 |
750 |
750×400×50×11 |
±48 |
5.0 |
|
FA112 |
1000 |
1000×550×60×12 |
±60 |
9.0 |
|
FA113 |
1500 |
1500×700×65×12 |
±85 |
14.0 |
|
FA114 |
2000 |
2000×1000×80×12 |
±110 |
24.0 |
D-Type Flat Square
-
Accuracy is JIS Standard Grade2, Non Hardened.
-
Used for Parallel measurement.
-
Use for measurement of tools perpendicularity, and squareness of parts attached using jigs, products squareness, etc
Grade 2 Non Hardened.
|
Code No. |
Nominal
Measurement |
Measurement
(H×L×W×tmm) |
Squareness
(μm) |
Mass
(kg) |
|
FB101 |
75 |
75×50×18×3 |
±27 |
0.1 |
|
FB102 |
100 |
100×70×20×4 |
±30 |
0.1 |
|
FB104 |
150 |
150×100×25×5 |
±35 |
0.2 |
|
FB105 |
200 |
200×130×25×6 |
±40 |
0.35 |
|
FB107 |
300 |
300×200×30×6 |
±50 |
0.6 |
|
FB109 |
400 |
400×200×40×8 |
±60 |
1.5 |
|
FB111 |
500 |
500×255×40×8 |
±70 |
1.8 |
|
FB112 |
600 |
600×300×40×8 |
±80 |
2.5 |
|
FB113 |
1000 |
1000×500×50×10 |
±120 |
5.5 |
|
FB114 |
1500 |
1500×700×65×12 |
±170 |
14.0 |
|
FB115 |
2000 |
2000×1000×80×12 |
±220 |
24.0 |
