GS64 High Accuracy Reflective Open Grating Scale
GS64 series is designed for high speed & high accuracy applications, i.e. Metrology equipment, high speed PCB drilling machines, linear motors…or etc.
GS64’s unique non-contact Phased Array reflective open grating measuring system offers high precision backlish free position readings.

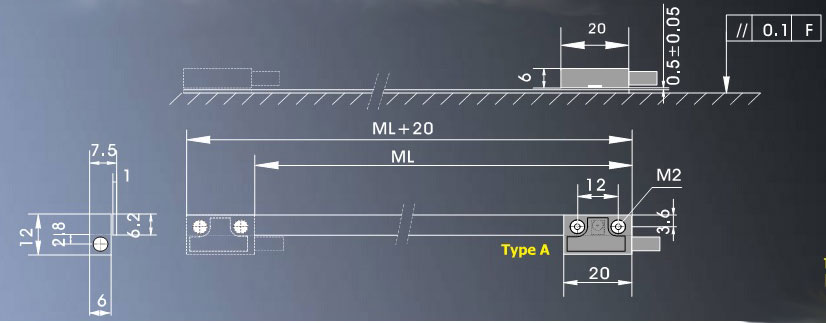

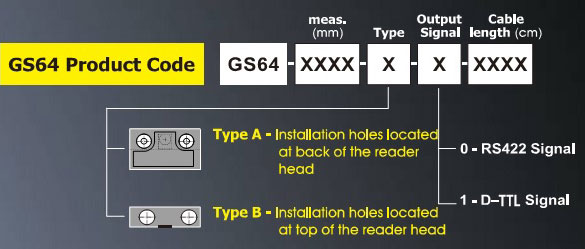

GS64 is one of the smallest grating scales in this planet, available in two types of miniature reader head housing, which offering two different installation direction respectively, making your scale installation extremely easy.
Standard resolution for GS64 is 0.1μm, maximum measuring speed up to 150m/min, acceleration up to 4G.
Three choices of measuring accuracy: (±10μm/±5μm/±3μm) are available to achieve the best price-performance for your application.
GS64 Series Technical Specifications
|
|
GS64 |
|
Meas.standard |
80μm(0.08mm) Pitch Glass Grating |
|
Grating System |
Reflective Glass |
|
Reader Carriage |
Non-Contact Open Reflective Carriage System |
|
Resolution |
0.1 μm |
|
Meas.Travel |
120mm |
G1: Standard length: 120mm, User cut on demand |
|
500mm |
G2: Standard length: 500mm, User cut on demand |
|
1000mm |
G2: Standard length: 1000mm, User cut on demand |
|
1100-3000mm |
G3: Every 100mm per spec. |
|
Accuracy |
50-500mm |
±3μm/±5μm |
|
550-1000mm |
±5μm/±10μm |
|
1100-3000mm |
±10μm/m |
|
Hysteresis |
Included in accuracy |
|
Max.Speed |
150m/min |
|
Supply |
DC 5V±5% |
|
Output Signal |
D-TTL /RS 422 |
|
Output Connector |
DSUB 9 |
