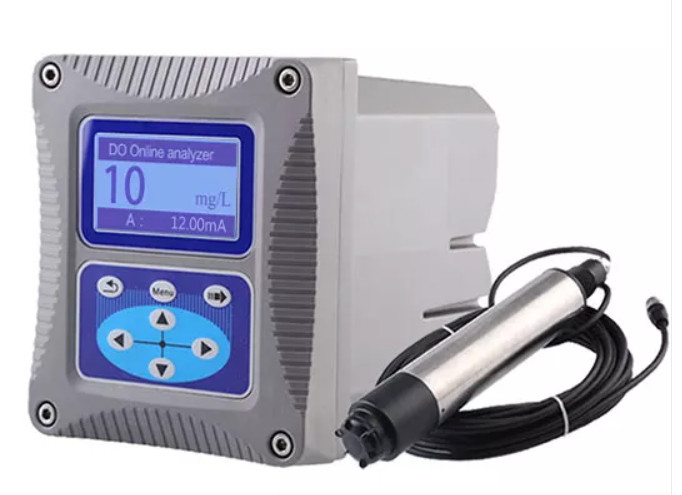

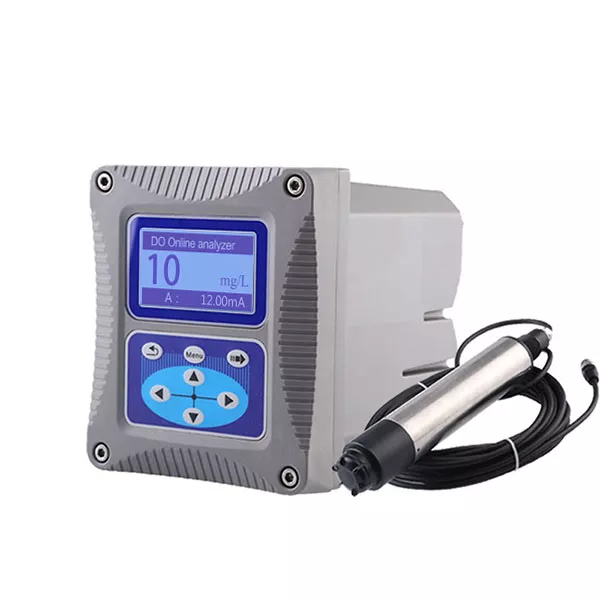

SUP-DO700 Optical dissolved oxygen meter
SUP-DO700 dissolved Oxygen meter adopts fluorescence method to measure dissolved oxygen.The cap of the sensor is coated with a luminescent material. Blue light from an LED illuminates the luminescent chemical. The luminescent chemical instantly becomes excited and releases red light. The time and intensity of red light are inversely proportional to the concentration of oxygen molecules, So the concentration of oxygen molecules is calculated.
Features
Range: 0-20mg/L,0-200%,0-400hPa
Resolution: 0.01mg/L,0.1%,1hPa
Output signal: 4~20mA; Relay; RS485
Power supply: AC220V±10%; 50Hz/60Hz
