Cast Iron A-Type V Block

[ Stock No:324 ]

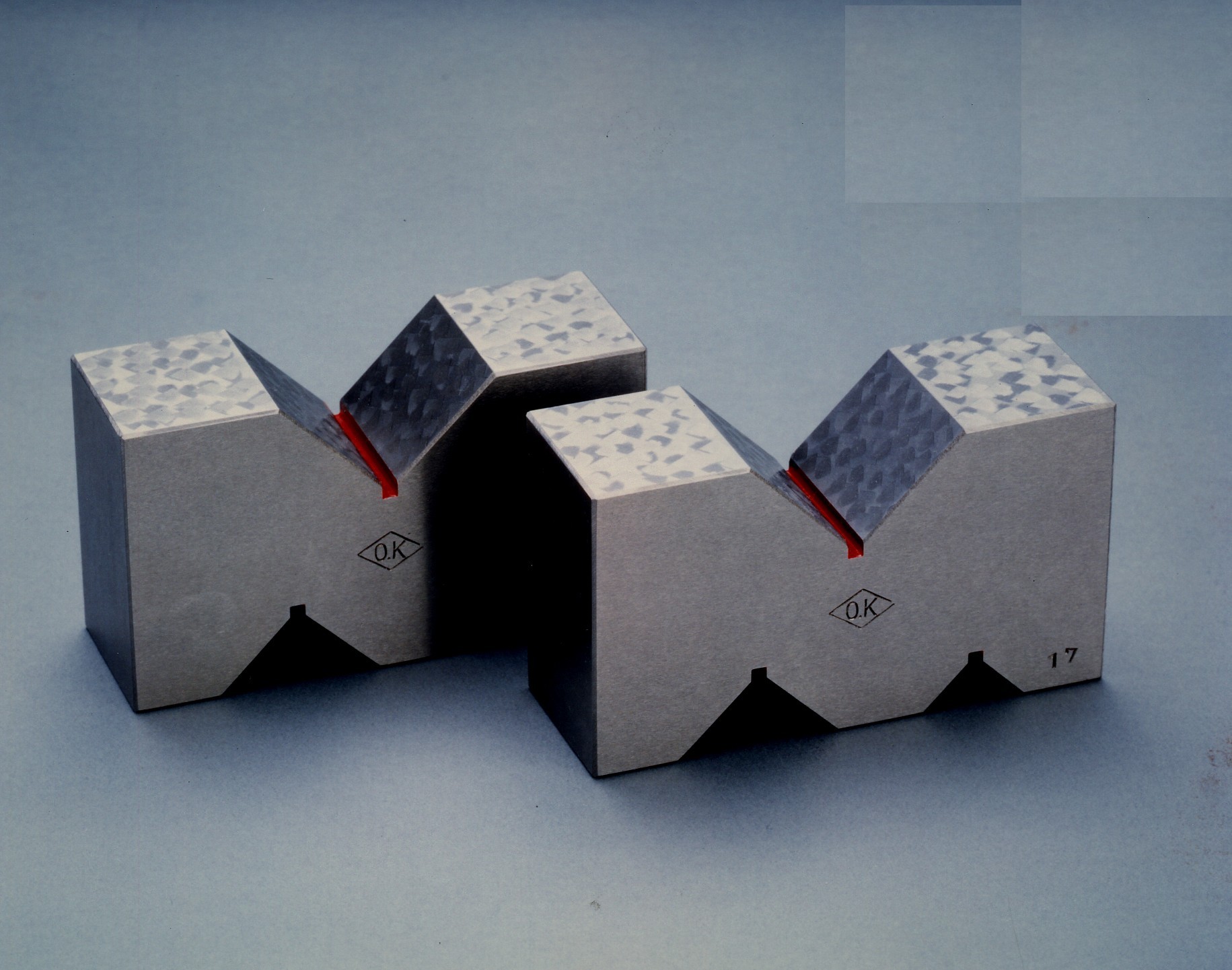

Cast Iron A-Type V Block

  • There are V groove in 3 places, small, medium and large.
  • 2 blocks make up one set. Parallelism of base and V groove of the 2 blocks is assured.
  • Very convenient for round objects, and other types of inspection or as supporting block (Rectitude stand)
  • V Groove is 90 degrees
Nominal
Measurement
Measurement
(L×H×Wmm)
V Width
(L×M×S)
Grade A Standard Product Mass
(kg/Set)
Code NO. Base and
V Groove
Parallelism
Code No. Base and
V Groove
Parallelism
50 50×32×22 20×15×11 JE101 5μm JE201 10μm 0.5
75 75×38×25 30×18×15 JE103 JE203 1.0
100 100×58×35 40×30×20 JE104 JE204 2.6
125 125×80×50 50×40×30 JE105 JE205 7.5
150 150×90×60 60×50×40 JE106 JE206 8.0
200 200×140×90 100×60×50 JE107 8μm JE207 15μm 23.0
250 250×140×100 120×90×70 JE108 JE208 30.0
