Accuracy ±1% |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
S.I. MODEL |
CEM10N3X8D-P |
CEM20N3X10D-P |
CEM50N3X12D-P |
CEM100N3X15D-P |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TORQUE RANGE
[N･m] |
MIN.～MAX. |
2～10 |
4～20 |
10～50 |
20～100 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1DIGIT |
0.01 |
0.02 |
0.05 |
0.1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
METRIC MODEL |
CEM10N3X8D-M-P |
CEM20N3X10D-M-P |
CEM50N3X12D-M-P |
CEM100N3X15D-M-P |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TORQUE RANGE
[kgf･cm/kgf･m] |
MIN.～MAX. |
kgf・cm 20～100 |
40～200 |
100～500 |
200～1000 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1DIGIT |
kgf・cm 0.1 |
0.2 |
0.5 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AMERICAN MODEL |
CEM10N3X8D-I-P |
CEM20N3X10D-I-P |
CEM50N3X12D-I-P |
CEM100N3X15D-I-P |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TORQUE RANGE
[lbf･in/lbf･ft] |
MIN.～MAX. |
lbf・in 20～90 |
36～180 |
100～450 |
200～900 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1DIGIT |
lbf・in 0.1 |
0.2 |
0.5 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
MAX. HAND FORCE [N] |
48.1 |
92.2 |
196.9 |
275.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

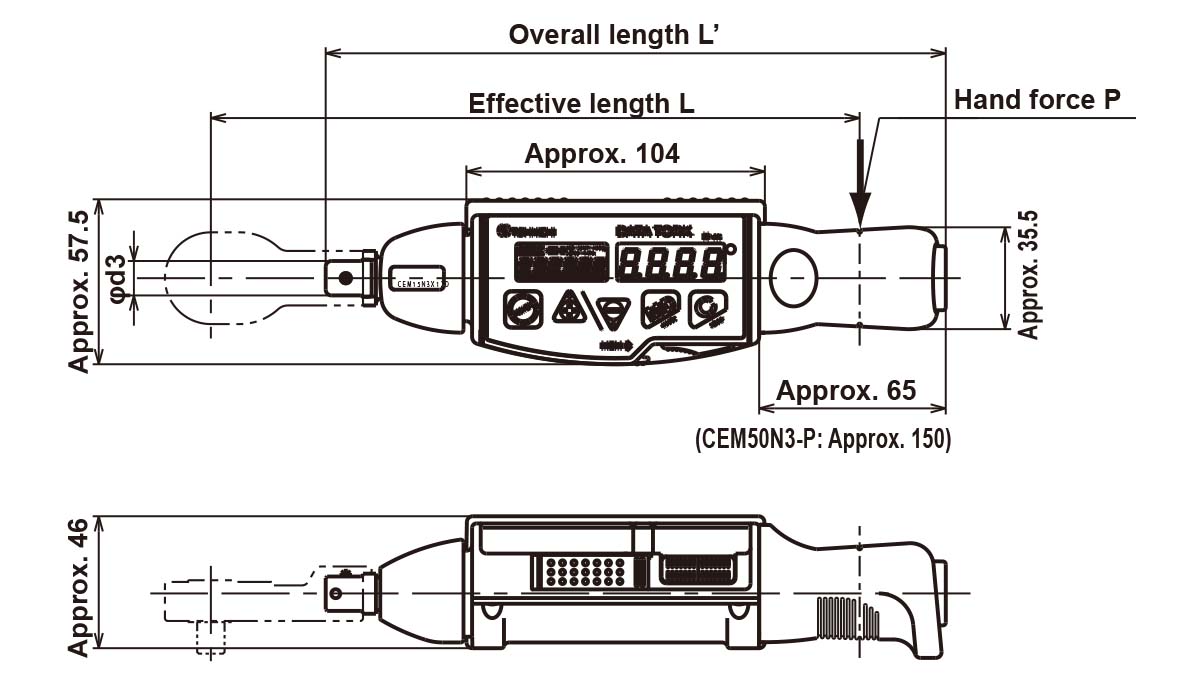

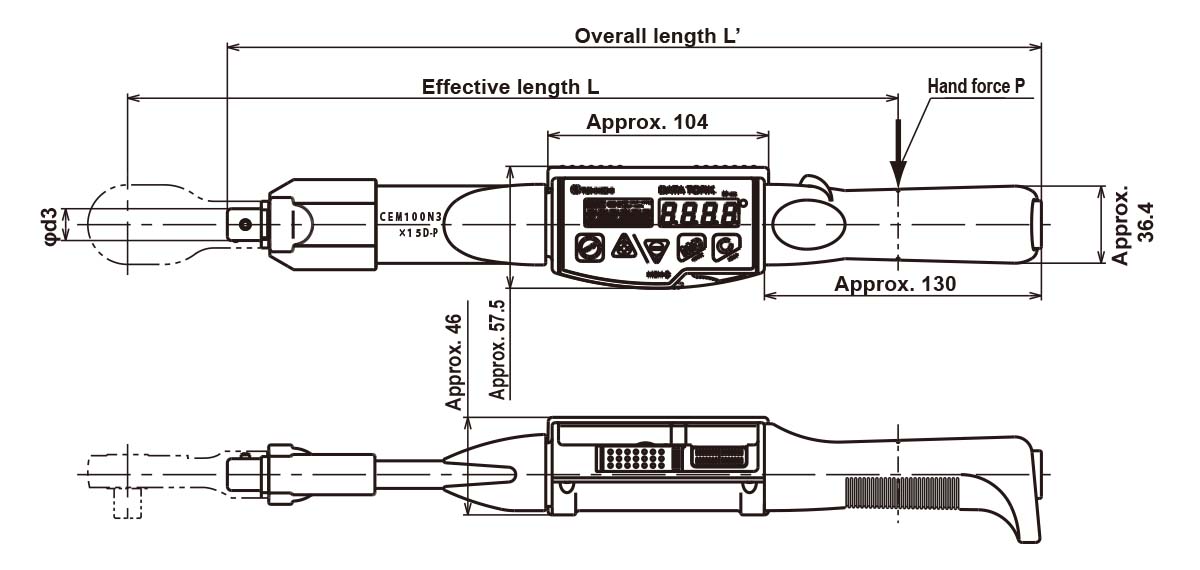

DIMENSION
[mm] |
EFFECTIVE LENGTH (L) |
208 |
217 |
254 |
363 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OVERALL LENGTH (L') |
212 |
214 |
282 |
384 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HEAD (d3) |
8 |
10 |
12 |
15 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
WEIGHT [kg] |
0.46 |
0.47 |
0.58 |
0.63 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
INTERCHANGEABLE
HEAD |
（SH,RH,QH,HH）
8D |
（SH,SH-N,RH,QH,DH,HH）
10D |
（SH,RH,QH,RQH,DH,HH）
12D |
（SH,RH,QH,RQH,DH,HH）
15D |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Accuracy ±1% |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
S.I. MODEL |
CEM200N3X19D-P |
CEM360N3X22D-P |
CEM500N3X22D-P |
CEM850N3X32D-P |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TORQUE RANGE
[N･m] |
MIN.～MAX. |
40～200 |
72～360 |
100～500 |
170～850 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1DIGIT |
0.2 |
0.4 |
0.5 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
METRIC MODEL |
CEM200N3X19D-M-P |
CEM360N3X22D-M-P |
CEM500N3X22D-M-P |
CEM850N3X32D-M-P |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TORQUE RANGE
[kgf･cm/kgf･m] |
MIN.～MAX. |
400～2000 |
720～3600 |
kgf・m 10～50 |
17～85 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1DIGIT |
2 |
4 |
kgf・m 0.05 |
0.1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AMERICAN MODEL |
CEM200N3X19D-F-P |
CEM360N3X22D-F-P |
CEM500N3X22D-F-P |
CEM850N3X32D-F-P |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TORQUE RANGE
[lbf･in/lbf･ft] |
MIN.～MAX. |
lbf・ft 30～150 |
52～260 |
72～360 |
124～620 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1DIGIT |
lbf・ft 0.2 |
0.4 |
0.5 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
MAX. HAND FORCE [N] |
428.3 |
498.6 |
549.5 |
608 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DIMENSION
[mm] |
EFFECTIVE LENGTH (L) |
467 |
722 |
910 |
1398 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OVERALL LENGTH (L') |
475 |
713 |
949 |
1387 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HEAD (d3) |
19 |
22 |
32 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
WEIGHT [kg] |
0.78 |
1.13 |
4.00 |
5.14 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
INTERCHANGEABLE
HEAD |
（SH,RH,QH,RQH,DH,HH）
19D |
（SH,RH,QH,RQH,DH,HH）
22D |
（SH,RH,QH）
32D |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CEM3-P standard software general discriptions |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Portion Memory |
Max. 100 parts (Part name, number of screws, tightening direction, high / low torque, measuring order.) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Measurement Data Storage |
Up to 3,000 screw data (vary depending on parts registered), measurement part name, measured value, pass / fail judgement, measurement time and data.) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DISPLAY |
7 segments LED 4 lines 10 mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
14 segments LCD 3 lines 7 mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7 segments LED 4 lines 3 mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Battery Life Indicator ( 4 steppes ) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Judgment LED RED / BLUE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
COMMUNICATION FUNCTIONS |
RS232C ( 2400-19200 bps ) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Serial output corresponding to a USB connecter |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
POWER SUPPLY |
Ni-MH rechargeable battery |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CONTINUOUS USE |
Approx. 20 hrs with fully charged ( 8 hrs by 1 hour recharging ) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RECHARGING TIME |
Approx. 3.5 hrs |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OPERATION TEMPERATURE[℃] |
0～40 no condensation |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
BASIC FUNCTION |
Peak Hold |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Peak Data Memory with date and time |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Auto Memory & Resetting |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Tightening Completion Buzzer |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Judgment of Measured Data |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Auto Zero setting |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Auto power off ( 3 min ) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Clock |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
