Cần siết lực Tonichi CEM3-BT /CEM3-G-BT series

Ngày đăng: 30/13/2019 - 790 lượt xem

Giá: Liên hệ

Xuất xứ:
Tình trạng:
Model:
Bảo hành:

Số lượng:

Mua hàng

Hotline:

Hotline: 0365930441

Mô tả sản phẩm
Thông số kỹ thuật
Chi tiết dòng sản phẩm
Tài liệu kỹ thuật

CEM3-BT /CEM3-G-BT

DATA TORK （Digital Torque Wrench）

Tightening Torque Data Management

Digital

Interchangeable Head

Direct Reading

Wireless

Re-chargeable

Digital torque wrench with collected data wireless transfer function.

CEM100N3X15D-BTS

CEM3-BTS display

CEM3-BTD display

Application

For inspection or tightening.

Features

CEM3-BT/CEM3-G-BT are for testing (-BTS). Two types of -BTD for tightening.
Built-in Bluetooth® module to transmit data wirelessly.
Simplex communication model "-BTS" and duplex communication model "-BTD".
"-BTS" model is a wireless data transmission model of standard model CEM3-G.
"-BTS" model has a function to save the inspected data into the body and sends it to an external device by wireless.
The torque to be judged by the "-BTD" model can be configured wirelessly, allowing you to consolidate several preset torque wrenches into a single unit.
The measurement data from the "-BTD" model can be sent wirelessly to an external device as necessary.
The CEM3-BT / CEM3-G-BT conform to telecommunication standards in Japan, the U.S., Canada, the EU, China, Thailand, Mexico, Vietnam, Brazil, Taiwan, Singapore, South Africa, South Korea and Russia (information valid as of March 2019). For other countries and regions, please contact Tohnichi.
Tohnichi’s interchangeable head torque wrenches can be used with our interchange head lineup which offers the best selection in the world, making these wrenches ideal for your work.
The TDMS/TDMSHT, TDMS-C/TDMSHT-C, TDMS-E/TDMSHT-E Tightening Data Management System makes data management easy.
Can also be used with the CEM50N3X12D-BTS/BTD to CEM850N3X32D-BTS/BTD models, which all come with a JCSS Calibration Certificate (uncertainty: 1%). Please contact Tohnichi for details.

Specifications

Accuracy ±1%
MODEL	SIMPLEX-BTS		CEM10N3X8D-G-BTS	CEM20N3X10D-G-BTS	CEM50N3X12D-G-BTS	CEM100N3X15D-G-BTS
	DUPLEX-BTD		CEM10N3X8D-G-BTD	CEM20N3X10D-G-BTD	CEM50N3X12D-G-BTD	CEM100N3X15D-G-BTD
TORQUE RANGE [N・m]	MIN.～MAX.		2～10	4～20	10～50	20～100
	1 DIGIT		0.01	0.02	0.05	0.1
TORQUE RANGE [kgf･cm]	MIN.～MAX.		20～100	40～200	100～500	200～1000
	1 DIGIT		0.1	0.2	0.5	1
TORQUE RANGE [kgf･m]	MIN.～MAX.		0.2～1	0.4～2	1～5	2～10
	1 DIGIT		0.001	0.002	0.005	0.01
TORQUE RANGE [lbf･in]	MIN.～MAX.		20～90	36～180	100～440	200～880
	1 DIGIT		0.1	0.2	0.5	1
TORQUE RANGE [lbf･ft]	MIN.～MAX.		1.5～7.3	3～14.5	7.5～36	15～73
	1 DIGIT		0.01	0.02	0.05	0.1

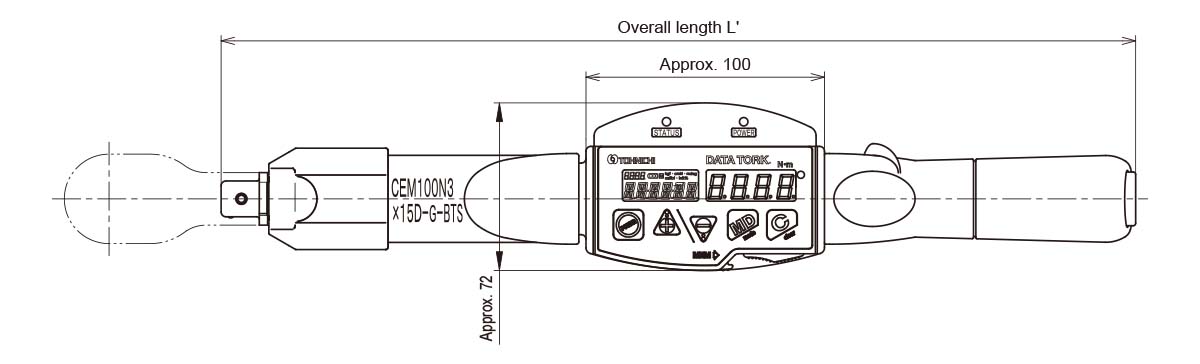

OVERALL LENGTH		L'	212	214	282	384
WEIGHT [kg]			0.54	0.55	0.66	0.71

Accuracy ±1%
MODEL	SIMPLEX-BTS		CEM200N3X19D-G-BTS	CEM360N3X22D-G-BTS	CEM500N3X22D-G-BTS	CEM850N3X32D-G-BTS
	DUPLEX-BTD		CEM200N3X19D-G-BTD	CEM360N3X22D-G-BTD	CEM500N3X22D-G-BTD	CEM850N3X32D-G-BTD
TORQUE RANGE [N・m]	MIN.～MAX.		40～200	72～360	100～500	170～850
	1 DIGIT		0.2	0.4	0.5	1
TORQUE RANGE [kgf･cm]	MIN.～MAX.		400～2000	720～3600	1000～5000	-
	1 DIGIT		2	4	5	-
TORQUE RANGE [kgf･m]	MIN.～MAX.		4～20	7.2～36	10～50	17～85
	1 DIGIT		0.02	0.04	0.05	0.1
TORQUE RANGE [lbf･in]	MIN.～MAX.		360～1700	650～3100	890～4400	-
	1 DIGIT		2	4	5	-
TORQUE RANGE [lbf･ft]	MIN.～MAX.		30～150	52～260	73～360	124～620
	1 DIGIT		0.2	0.4	0.5	1
OVERALL LENGTH		L'	475	713	949	1387
WEIGHT [kg]			0.86	1.21	4.08	5.22

MODEL			Simplex（-BTS）		Duplex（-BTD）
COMMUNICATION DIRECTION			CEM3-BTS ⇒ External device		CEM3-BTD ⇔ External device
MEMORY			999		None
COONTINUOUS USE			Approx. 8hrs

Bluetooth® VERSION			Ver3.0
COMMUNICATION METHOD			AFH
MODULATION METHOD			GFSK
RADIO OUTPUT POWER			4dBm
TRANSMISSION POWER CLASS			Class2
PROFILE			SPP
COMMUNICATION DISTANCE			Approx 10m
