I. LS163A Transmission Meter Introduction
Linshang LS163A window film transmission meter is an instrument for measuring the optical properties of uniform and transparent materials such as solar film, stick-film glass, heat-insulating glass and automobile side glass. We can select the measurement interface to display the infrared and ultraviolet rejection and transmittance.
LS163A advantages video
II. LS163A Transmission Meter Application
LS163A window film transmission meter is mainly suitable for various solar film, glass manufacturers, car 4S shops, car beauty shops and other occasions. In addition to solar film and heat insulation film, it can also be used to measure various stick-film glass, automobile side glass and PC materials.

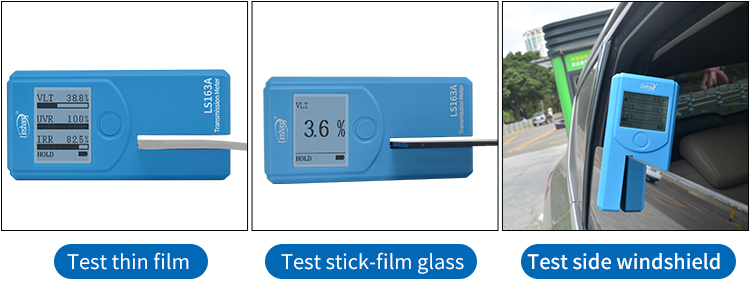

LS163A window tint detector test different materials
III. LS163A Transmission Meter Parameters
|
UV Peak wavelength
|
365nm |
|
IR Peak wavelength
|
1400nm |
|
Visible light wavelength
|
380-760nm, conforming to the CIE photopic luminosity function
|
|
Accuracy |
±2% (Colorless and transparent material)
|
|
Resolution |
0.1% |
|
Test Slot |
6mm *58mm (W*D) |
|
Meter Size |
120mm *75mm *25mm (L*W*H)
|
|
Display |
128*128 Dot matrix LCD |
|
Weight |
187g (Include Batteries) |
|
Power supply |
4*AAA alkaline battery |

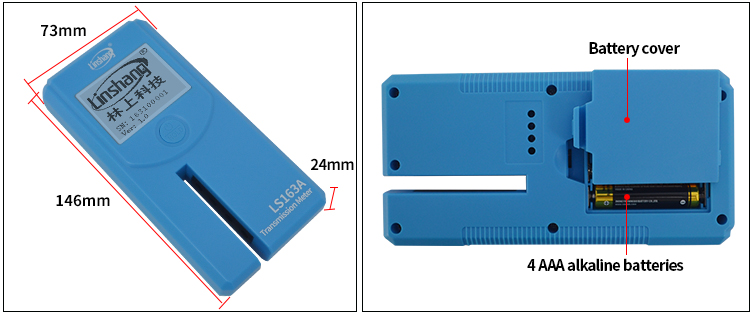

LS163A Transmission Meter appearance
IV. LS163A Transmission Meter Characteristics

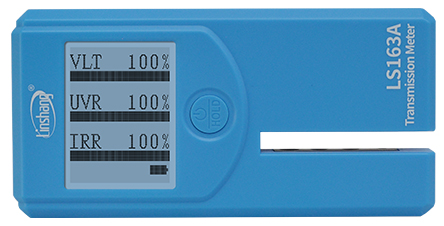

1. The solar film transmission meter has only one button. The three test results will be displayed on the interface immediately after putting the materials into the test slot.
LS163A window tint meter test stick-film glass

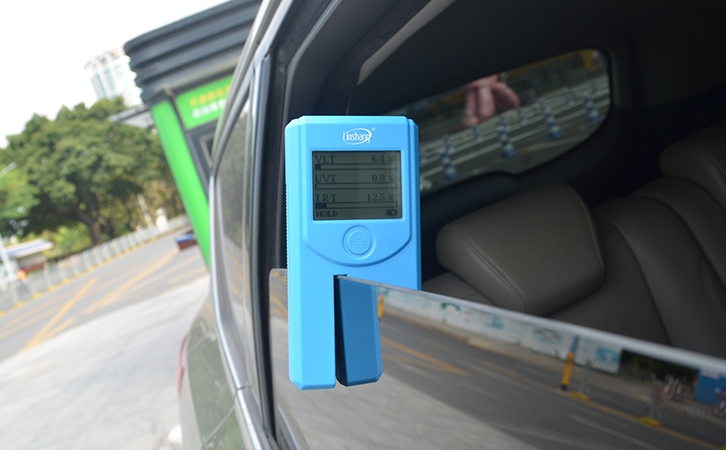

2. The LS163A transmission meter adopt parallel light path design, the test slot width can be 6mm. The instrument can also test large thickness materials such as car side windshield.
LS163A transmission meter test the car side windshield

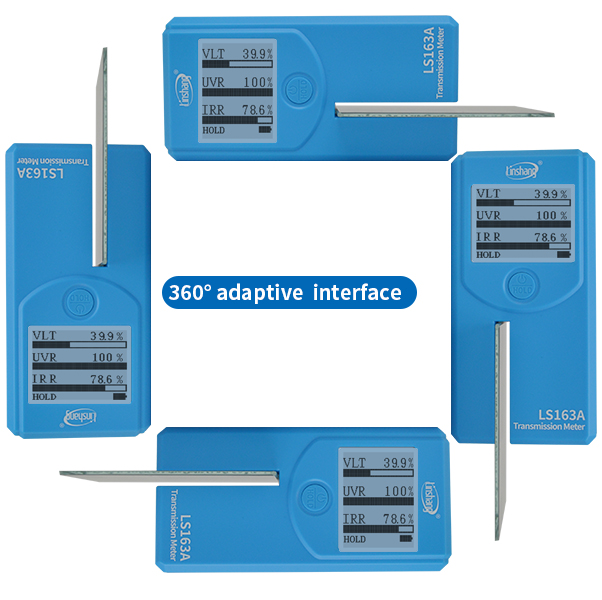

3. The display interface can be rotated 360 ° adaptively, which is convenient for reading data when testing at different angles
LS163A window tint meter rotative interface
4． The LS163A solar film transmission meter has real time dynamic calibration function , the meter will make self-calibration after power on.
LS163A window tint meter pass self-calibration

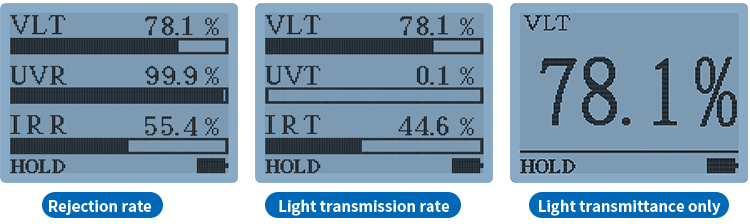

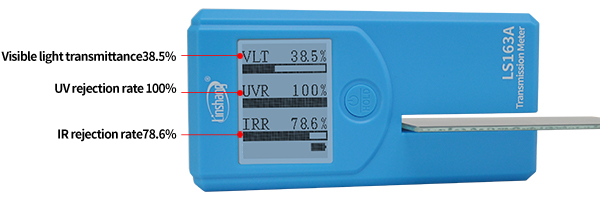

5． We can set the display data as UV and IR rejection rate, light transmission rate or light transmittance. Three measurement methods can be displayed.
LS163A window tint meter three measurement interfaces

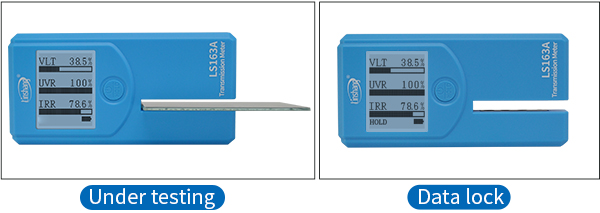

6. The window film transmission meter has data lock function. Press the hold button after testing, the data will remain on the interface after taking away the tested materials.
LS163A tint tester data lock function

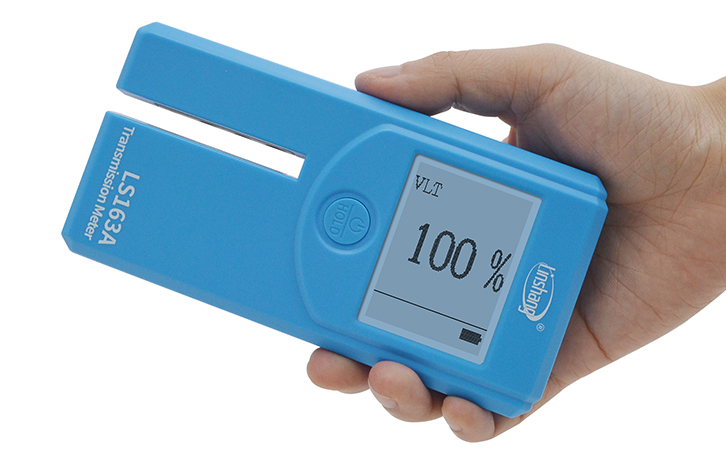

7. The window film transmission meter has small size with anti-slip design. The anti-slip design is convenient for holding or carrying out.
small size LS163A transmittance meter
8. The instrument adopts LCD dot matrix screen with backlight, which can be used in dark environment.
9. The tint tester is powered by 4 AAA alkaline dry batteries with low power consumption. It can continuously measure for more than 100 hours. The meter will automatically shut down without operation after 3 minutes.
