Máy đo màu colorimeters Linshang LS173

II. Colorimeter Application

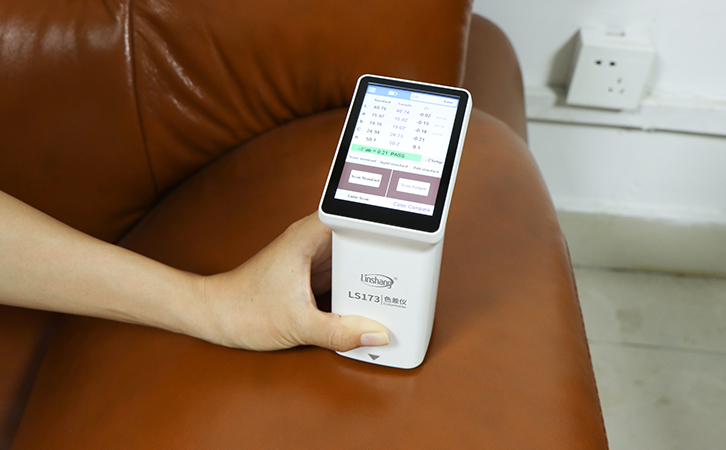

LS173 adopts D/8° specular component include (SCI) and the measured result is closer to the actual color of the object. Usually used in automotive paint, metal processing, stone, ink printing, decorative materials, leather cotton, plastics and plastics industries for product color measurement and management, product color difference quality control. The colorimeter is illuminated by an integrating sphere diffused light source, which is very suitable for color measurement of high-gloss and textured samples.

IV. Features

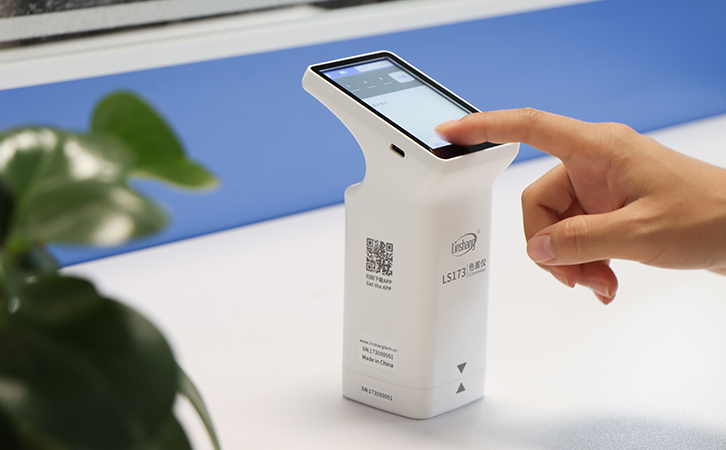

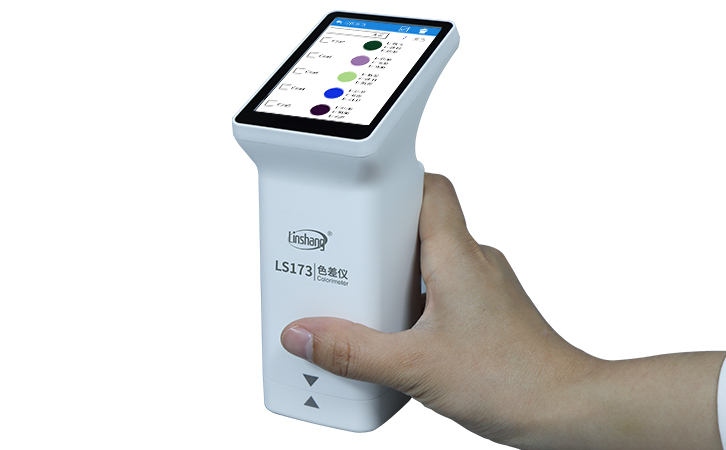

1. The large 3.5-inch touch screen makes the operation more convenient

The colorimeter comes with a 3.5-inch IPS color touch screen, no key operation is required; the screen is tilted at 20 degrees with a perfect viewing angle, convenient for reading. The color analyzer has a good user experience and human-computer interaction interface.

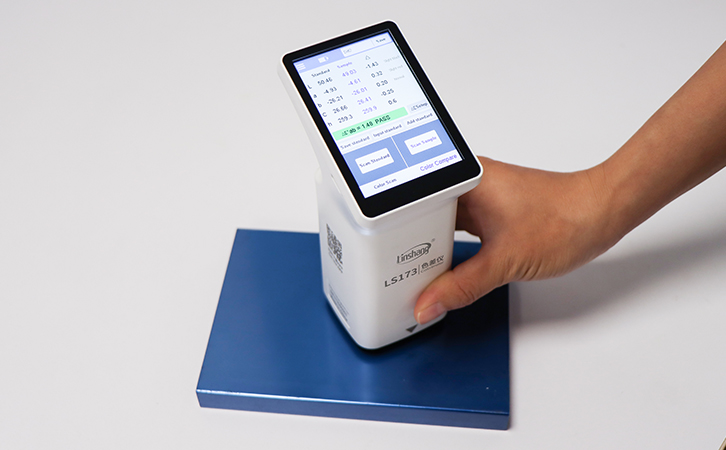

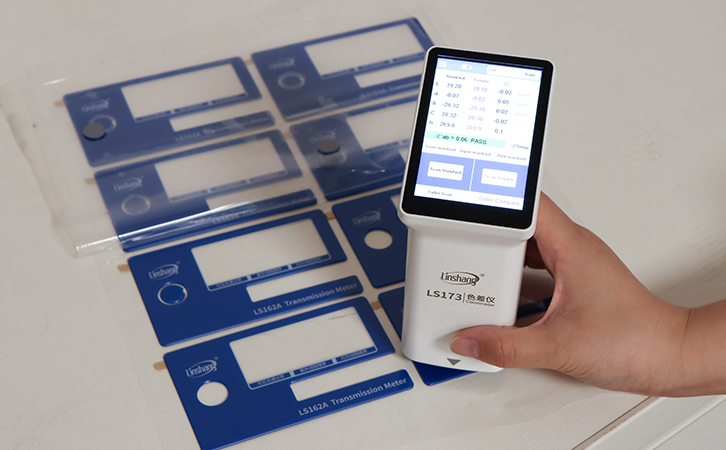

2. Color measurement and color difference comparison function

Color measurement can be achieved by touching the screen button or pressing the power button, and the color value can be measured in 1 second.

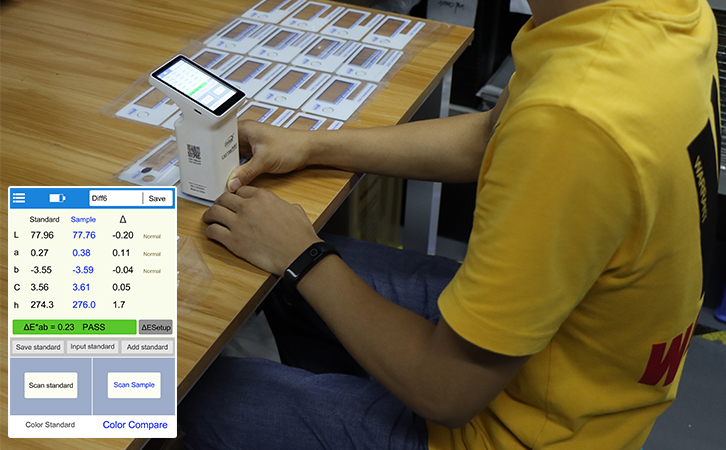

Two clicks can complete the color difference comparison, turn on the QC detection function, batch detection can be performed, and the color difference threshold can be customized to quickly achieve quality control.

3. Lab values, making color adjustment easier

Provide the color deviation indicator of the three color channels of Lab and provides assistance for color adjustment.

4. Good repeatability, accurate and stable measurement data

Good repeatability, standard deviation △E*ab, within 0.03 (measurement conditions: after warm-up correction, the average value of 30 measurements on the whiteboard at an interval of 3s) to ensure that it can pass the inspection of China Institute of Metrology.

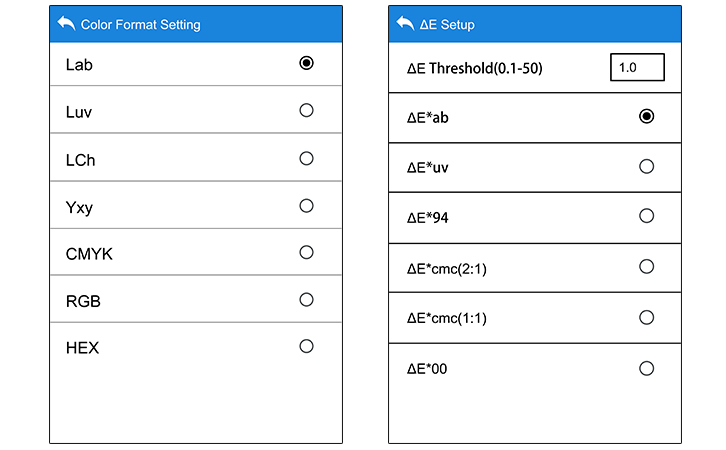

5. Seven color spaces and six color difference formulas, highly matching industry needs

The color analyzer has a variety of color spaces such as Lab\RGB\CMYK and a variety of color difference formulas to choose from, matching the color measurement needs of various industries.

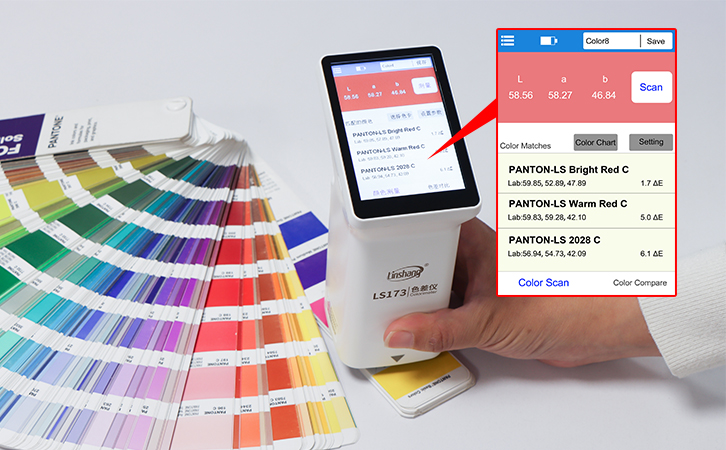

6. Built-in multiple electronic color charts

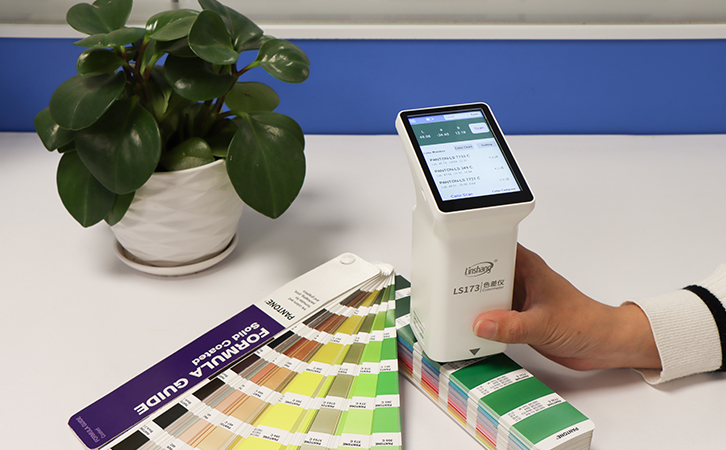

Built-in multiple standard electronic color charts, which can quickly match the 3 closest color codes, with an accuracy rate of over 90%.

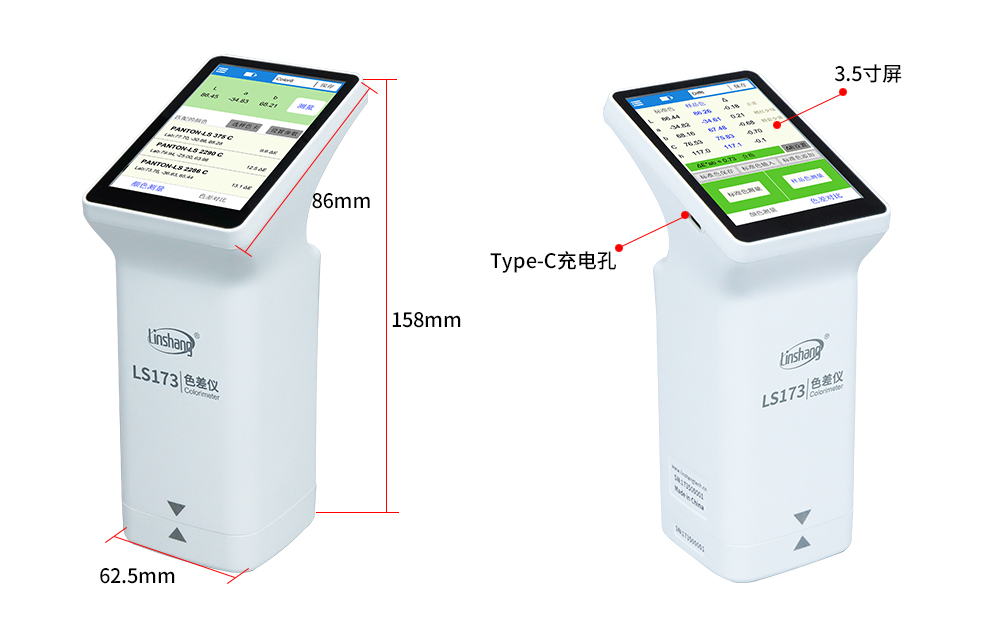

7. The body is small and portable

Small and portable, easy to store and carry; stable body, ergonomic design, more stable measurement data.

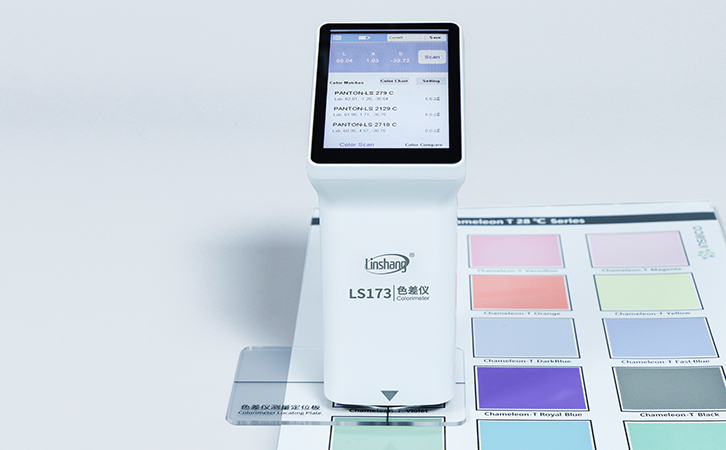

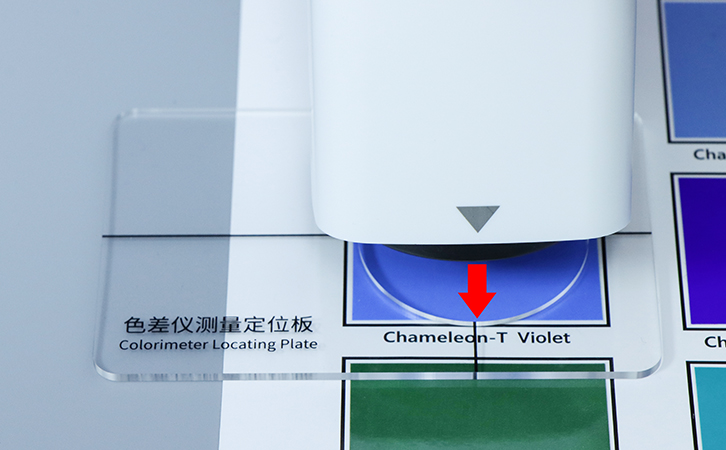

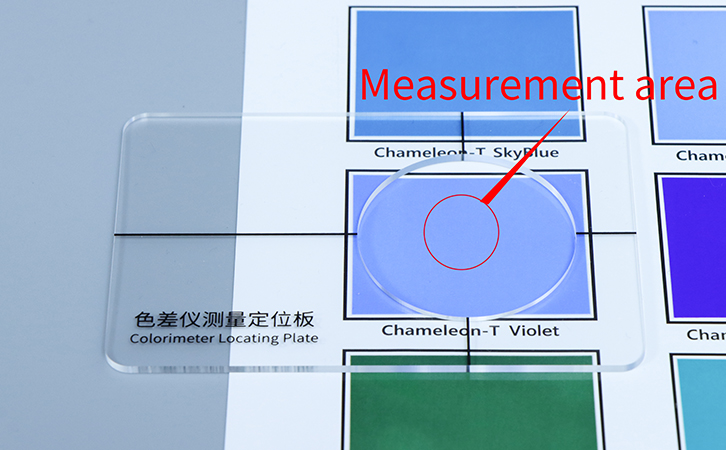

8. Measuring locating plate to make  measurement more accurate

The color difference meter is equipped with a measurement locating plate to meet the needs of precise alignment and make the measurement more accurate.

9. Large storage space

The color analyzer has built-in large storage space, which can store 1000 colors and 1000 color difference comparison records respectively. Perfectly solve the consistency problem caused by the fading of the standard product after long-term storage.

10. Compensation optical path technology

The instrument has a built-in compensation optical path with stable values and allows long-period calibration.

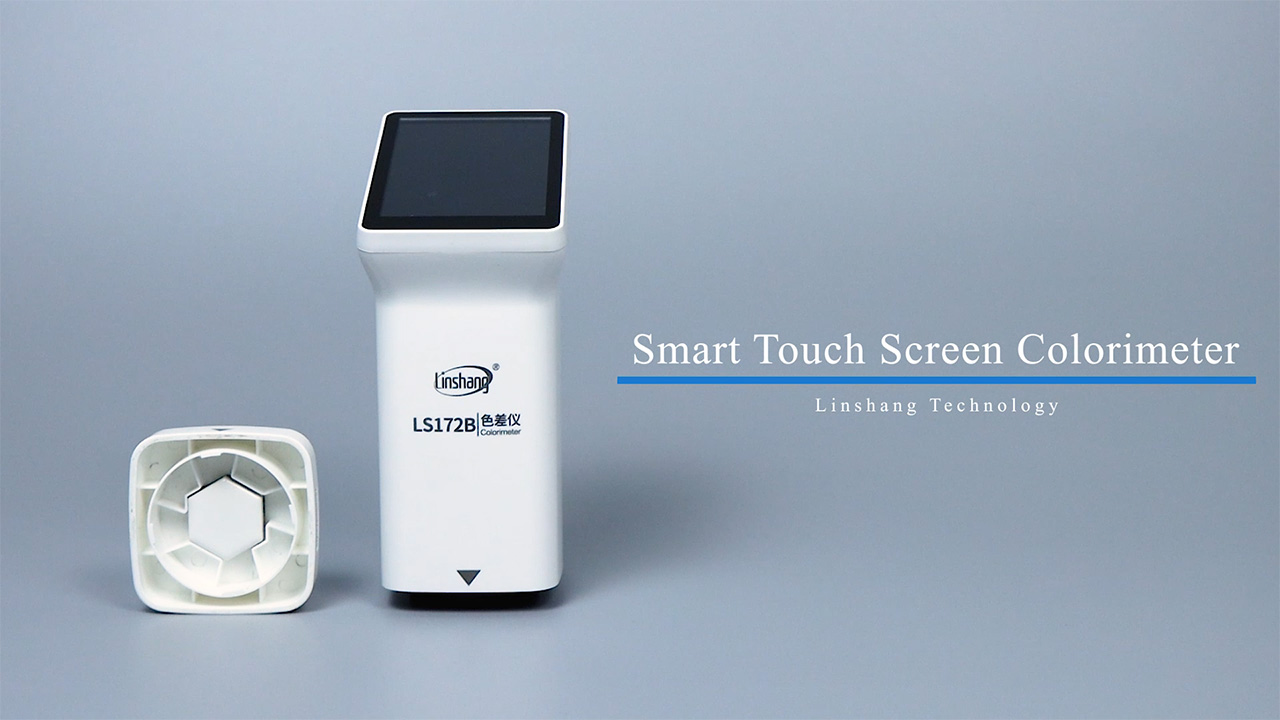

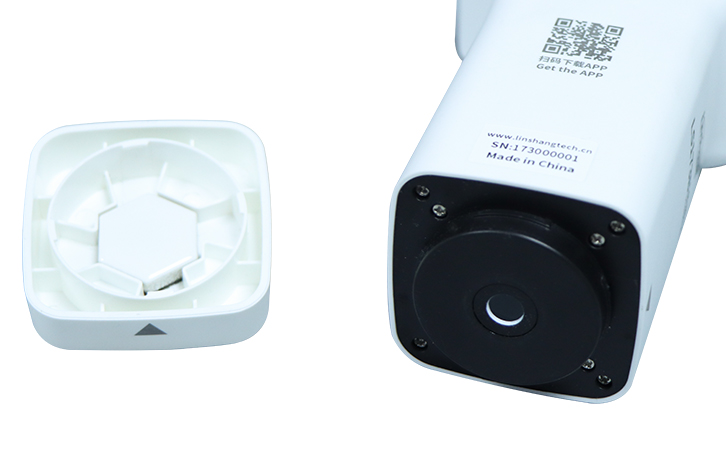

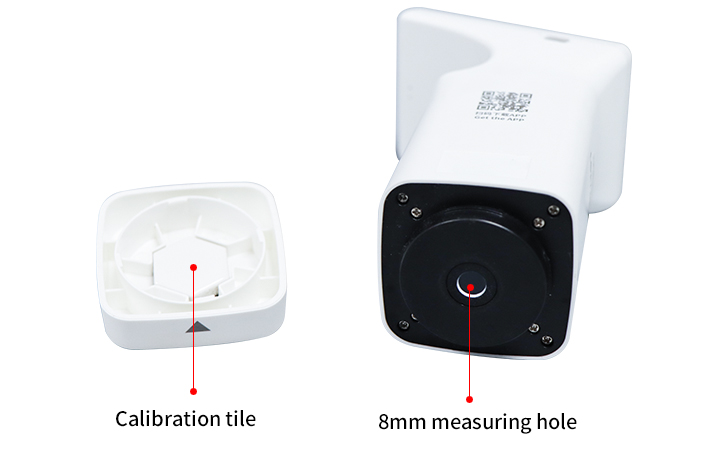

11. Whiteboard calibration, simple operation

The bottom cover integrates a calibration whiteboard, so there is no need to worry about losing it. No need for tedious operations.

12. Energy saving,  low power consumption

Built-in lithium battery, fully charged, can test 10,000 times continuously. The default automatic off time can be set.

V．Product Qualifications and Standards

LS173 handheld colorimeter meets the following standards:

GBT 3978-2008 standard lighting body and geometric conditions
