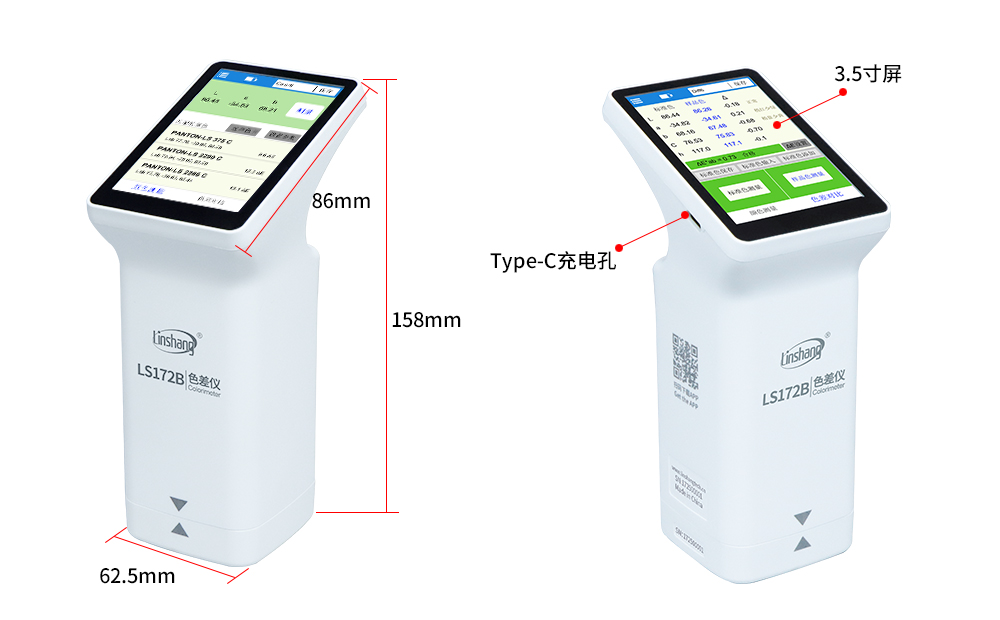

The instrument uses a 3.5-inch IPS color capacity touch screen, no button settings are required; the screen is tilted at 20 degrees and has a perfect viewing angle, which has a good user experience and human-computer interaction interface.

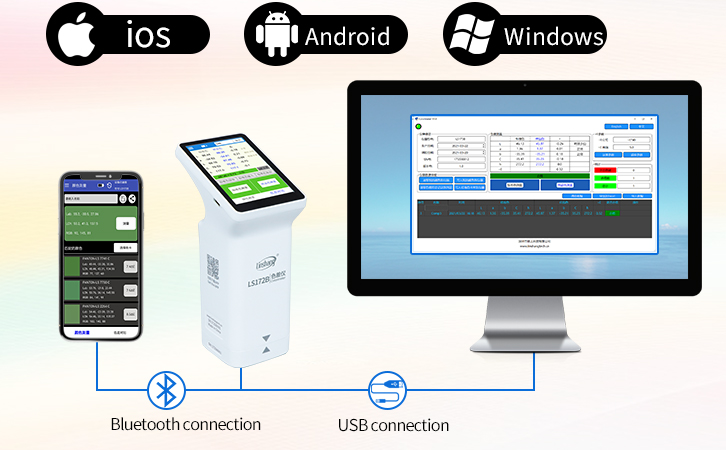

The instrument is equipped with mobile APP and PC software, covering Android, iOS, Windows systems; Chinese and English interface can be switched at will;

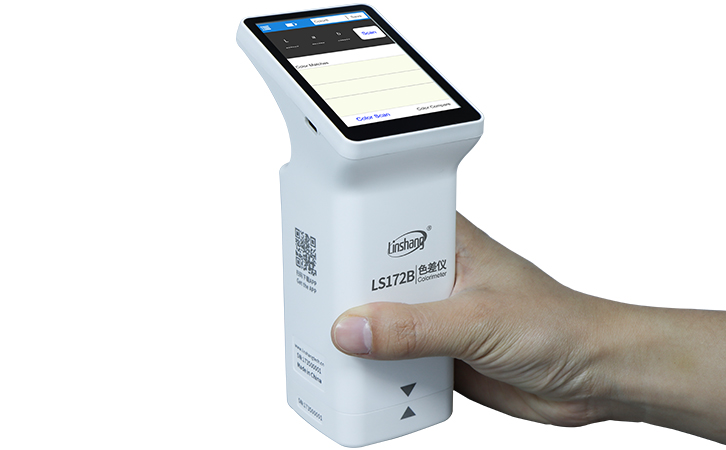

Small and portable, easy to store and carry; stable body, ergonomic design, more stable measurement data.

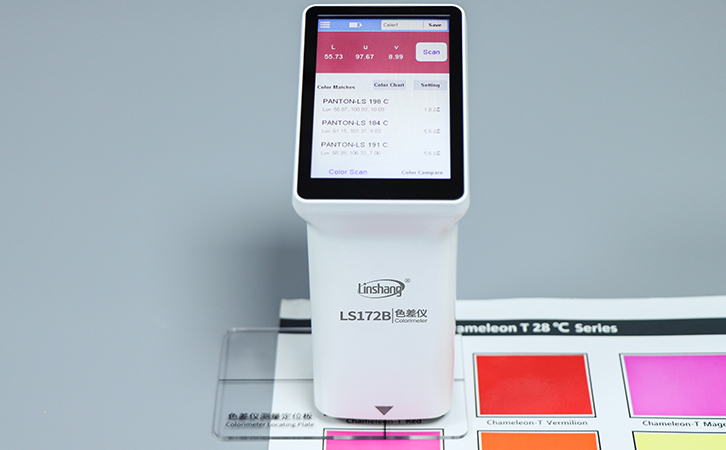

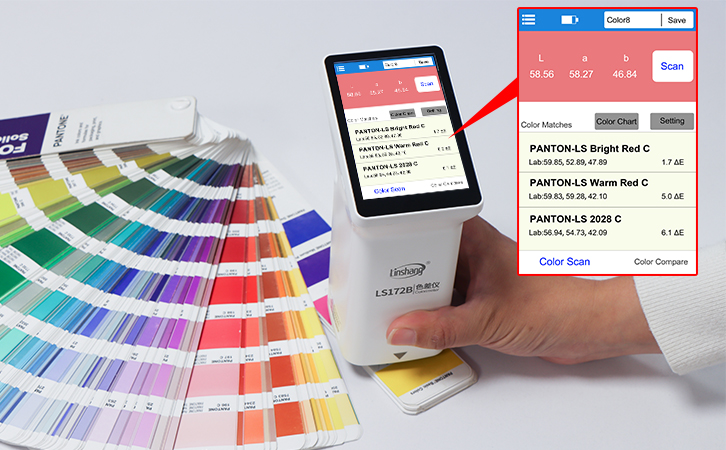

Built-in multiple standard electronic color charts (RAL, Pantone, NCS), quickly match the 3 closest color codes, with an accuracy rate of over 90%. No need to carry heavy color cards;

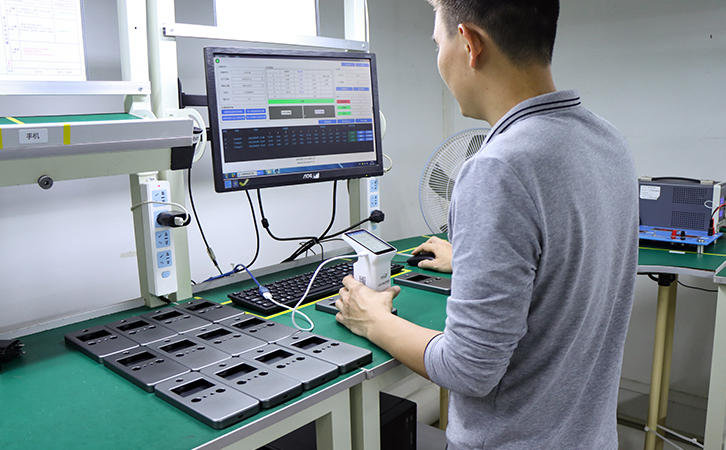

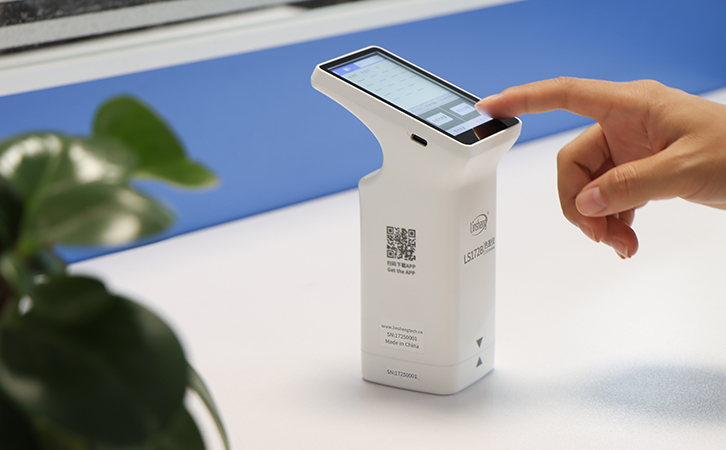

Color measurement can be achieved by pressing the screen or pressing the power button. Measure color in 1 s, compare color difference in 2 steps. Two clicks can complete the color difference comparison, turn on the QC testing function, batch QC testing can be performed. The color difference threshold can be set to quickly achieve quality control. In addition, it provides Lab values of measured color, which makes the color adjustment easier and more convenient.
The color difference meter has a variety of color spaces such as Lab\RGB\CMYK and a variety of color difference formulas to choose from, matching the color measurement needs of various industries.
The instrument has built-in large storage space, which can store 1000 colors and 1000 color difference comparison records respectively. By cooperating with mobile APP or PC software, the color meter can store a large amount of data.
The color data can be imported and exported through mobile APP or PC software. The data can be shared through WeChat, WhatsApp, mailbox, etc.
LS172B adopts AS7261 chip-level color sensor newly launched by American AMS company. The precise XYZ tristimulus color sensing function simulates the human eye response curve of the standard observer defined in the CIE1931 and CIE1976 color systems.

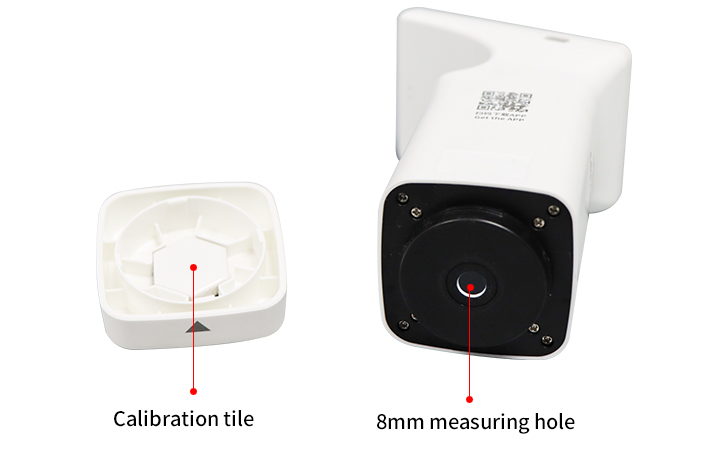

The instrument has a built-in compensation optical path with stable values and allows long-period calibration. The bottom cap integrates a calibration whiteboard, so there is no need to worry about losing it.

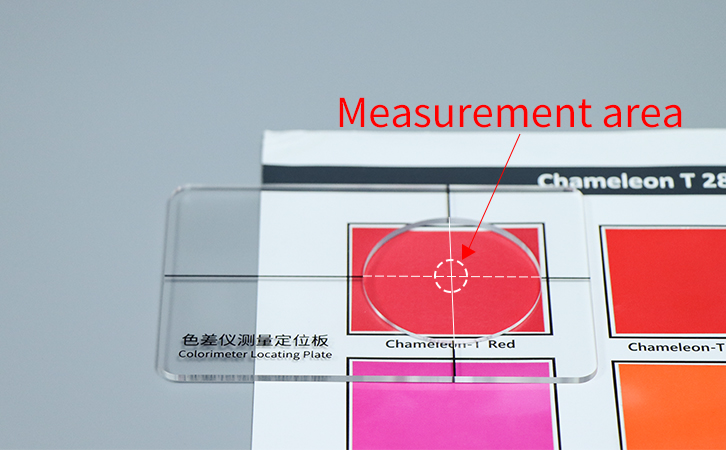

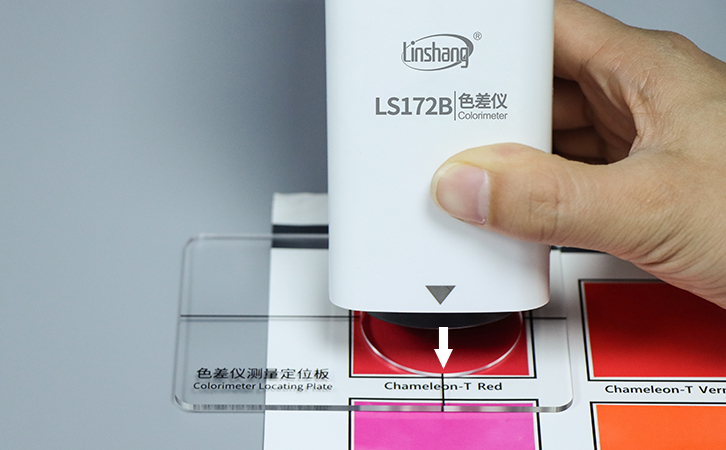

The instrument is equipped with a measurement locating plate to meet the needs of precise alignment and make the measurement more accurate.
Type-c interface for charging data, built-in lithium battery in the instrument, can be used 10,000 times continuously under full charge. The default automatic off time can be set.
