LS170 portable App smart colorimeter is designed to provide users color measurement and stable color comparisons for materials and products wherever color control is important. Linshang LS170 colorimeter is an exquisite and portable color difference measurement tool, this portable colorimeter is widely used in paint, test paper printing, decorations, leather and cotton, textile printing, plastics and other industries. LS170 portable colorimeter has Bluetooth function and it need to be used with the matching mobile APP. It has many color libraries such as Pantone. After connecting to the mobile phone APP via Bluetooth, the meter can quickly measure the color and make color comparisons using a digital method. After quickly matching the color in the color library, you can share the colors to your friends.

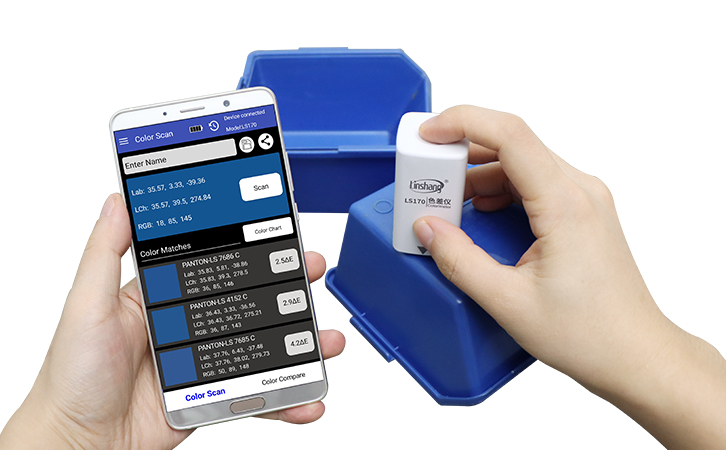

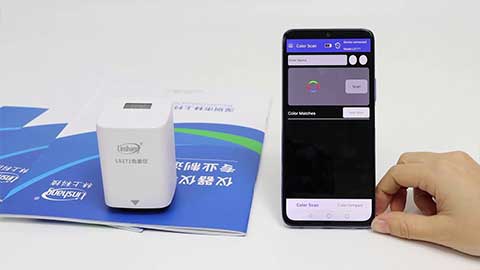

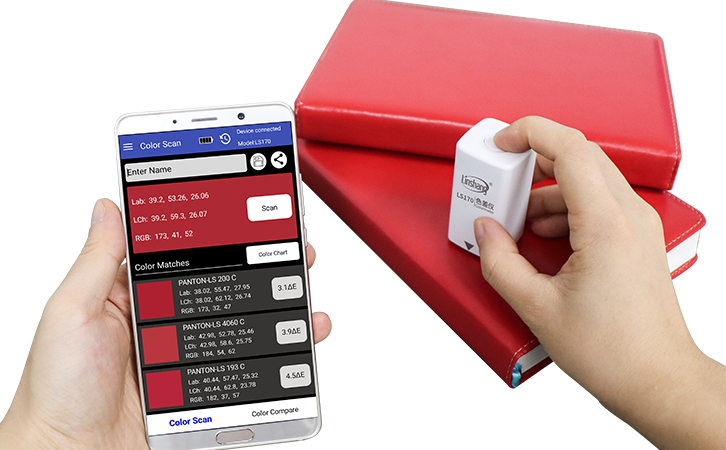

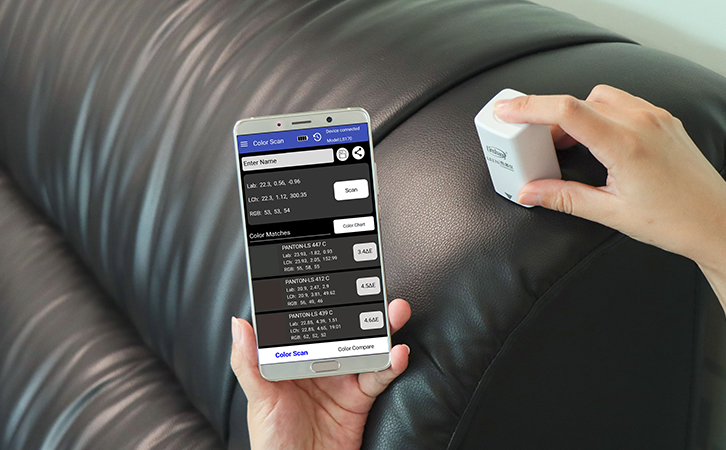

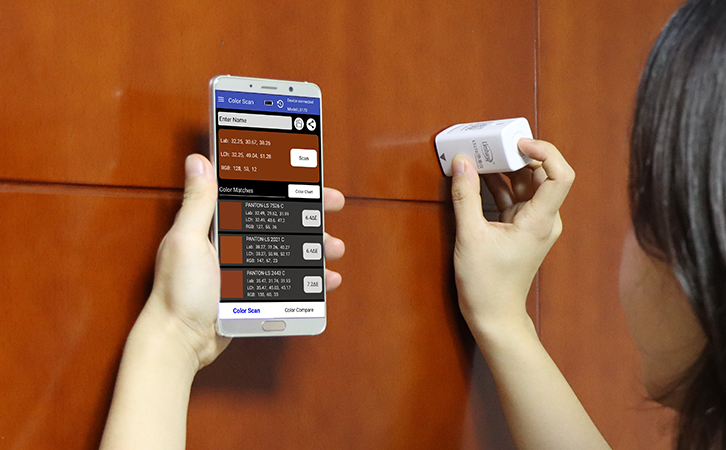

As a portable colorimeter, LS170 is widely used in car paint spraying, test paper printing, leather fabrics, plastic metal, textile and clothing, hardware, furniture industry, plastics, rubber and other fields. Below are some pictures of different materials measured by the LS170 colorimeter.

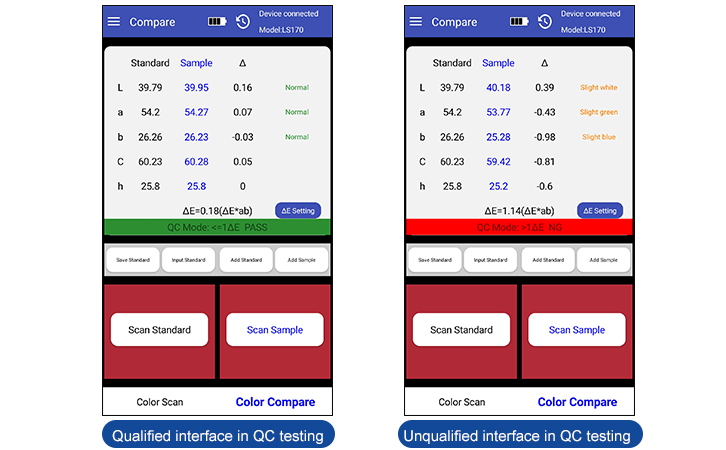

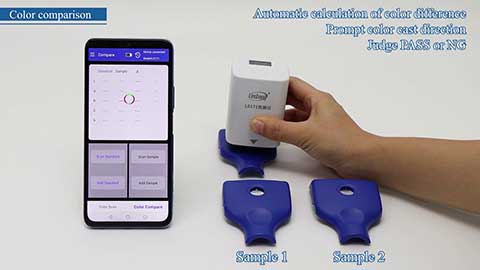

1. Achieve stable color quality using QC testing function when making color comparisons, after customizing the color difference threshold (tolerance value), it can automatically judge whether the color difference is qualified. The color cast direction is also displayed in the right of the ΔE value.
2. If you do not bring standard and sample, you can add the colors of the standards and samples into the personal color chart and standard color chart. In the color compare interface, we can directly input the standard color data such as LCh values and Lab values to compare with the sample color. You can also measure the standard color and save it in mobile colorimeter App.
3. Multiple standard color libraries are stored in the mobile APP, the small colorimeter has fast measurement speed and can quickly match the color close to it. The accuracy rate is as high as 90%, heavy color cards are unnecessary.
4. A large amount of color can be stored in mobile APP and make color measurement anytime and anywhere. Before measuring the color, we can select the color chart we need first.
5. Import and export color data via QQ, WeChat, email and other software.
6. LS170 portable colorimeter has 7 color spaces and 6 color difference formulas to meet the needs of different industries.

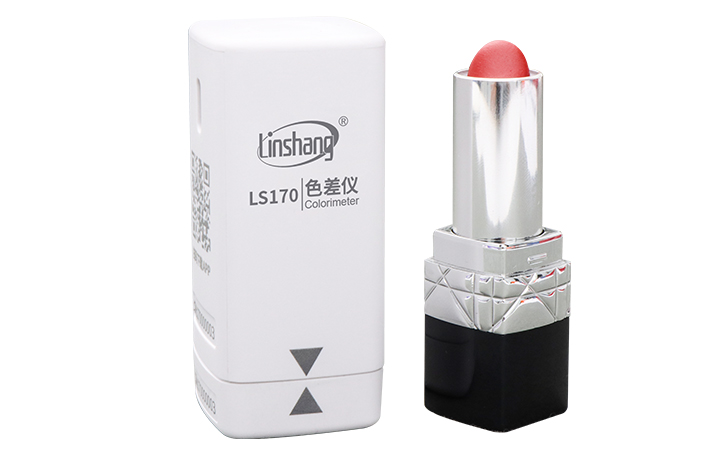

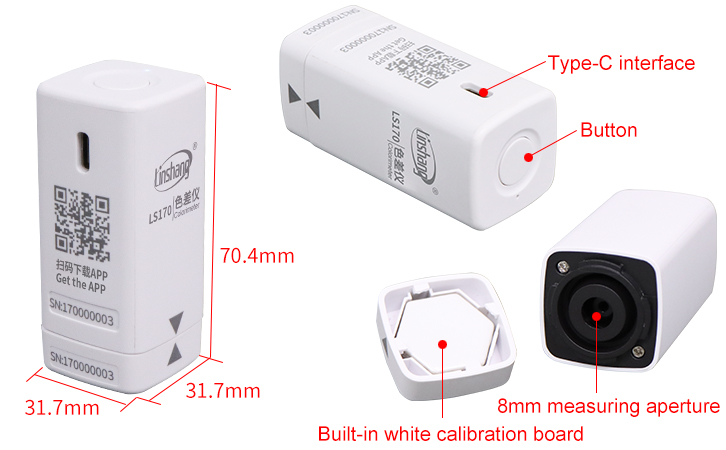

7. Small as lipstick and it is easy to carry.
8. Support Chinese and English.
9. The built-in lithium battery makes it safer and more convenient to use. It can continuously measure 10,000 times under full power.
10. Simple white board calibration and the built-in compensation light path ensures stable measurement data.
11. The color of standard samples can be added to mobile App.
12. Focus on color measurement and color difference identification, with repeatability ΔE*ab not higher than 0.03.
13. The colorimeter is stable to ensure stable measurement data.

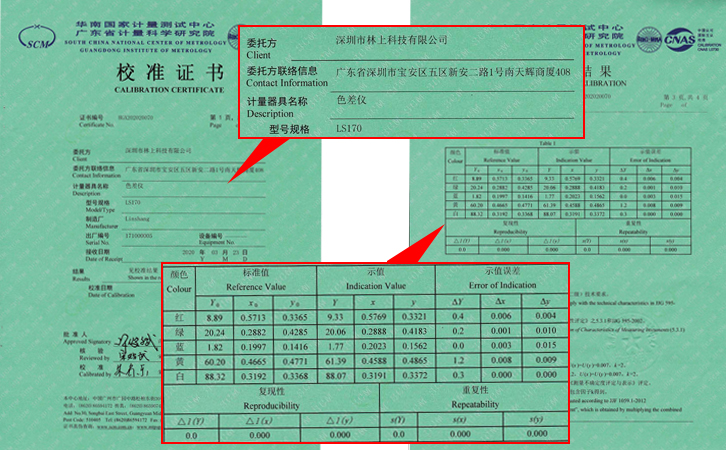

LS170 colorimeter meets the following standards:
GBT 3978-2008 Standard illuminants and geometric conditions
GBT 3979-2008 Methods for the measurement of object color
GBT 7921-2008 Uniform color space and color difference formula
GBT 11186.1-1989 Methods for measuring the color of paint films-Part 1: Principles
GBT 11186.2-1989 Methods for measuring the color of paint films-Part 2: Color measurement
GBT 11186.3-1989 Methods for measuring the color of paint films-Part 3: Calculation of color differences
JJG 595-2002 Colorimeters and Color Difference Meters
The App supports Android 5.0 or later, and iOS 10.0 or later.
The installation way is as follows:

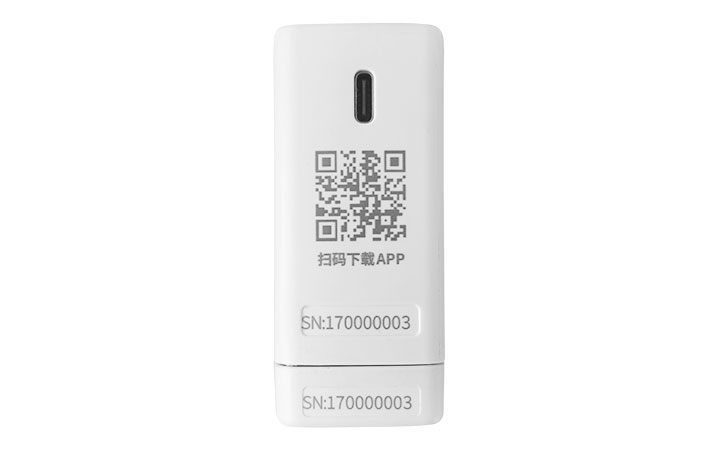

1) Scan the QR code on the colorimeter with the mobile browser, download and install as prompted.
2) Click on the link https://www.linshangtech.cn/a/170/ to install the APP.
3) Search for "LSColor" (case insensitive) in the APP Store to install the application.
1. The colorimeter has one-year warranty. If the meter works abnormally, please send the whole colorimeter to our company for maintenance
2. Provide users with spare parts and lifelong maintenance services
3. Provide the users with the meter inspection service
4. Free technical support for long term
