I. LS201 Digital Glass Thickness Meter Introduction
Linshang LS201 digital glass thickness meter uses the optical reflection principle to measure the glass thickness on one side of the glass. It is especially suitable for the measurement where general measurement tools such as scales or vernier calipers that cannot or are not easy to operate. Such as the thickness measurement of laminated glass and hollow glass. For the measurement of laminated glass, the thickness of multilayer glass and intermediate air layer can also be measured at the same time. The instrument uses CCD detection, liquid crystal display. It also has simple operation, fast and reliable measurement.
LS201 laminated glass thickness gauge features
II. LS201 Digital Glass Thickness Meter Parameters
|
Measurement accuracy |
± 0.1mm |
|
Measurement range |
Glass thickness 70mm，air layer thickness 45mm
|
|
Weight |
330g |
|
Battery |
4 AAA alkaline dry batteries |
|
Display |
240 * 160 dot matrix LCD |
|
Dimension |
130mm×72mm×33mm (L*W*H) |

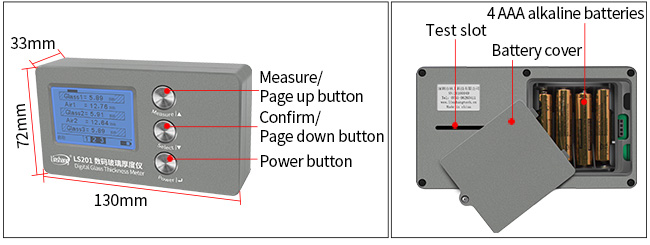

LS201 glass thickness meter appearance
III. LS201 Digital Glass Thickness Meter Characteristics
1. The digital glass thickness meter can nondestructively test the glass thickness. With laser reflection principle, the glass thickness can be measured on single side of the glass.
2. The accuracy of the glass thickness meter can be 0.1mm.

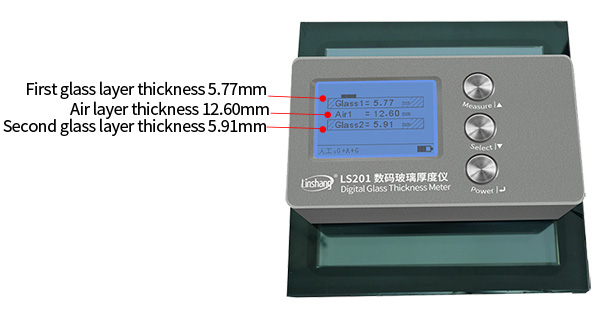

LS201 glass thickness meter test double glazing
3．The LS201 digital glass can measure triple glazing, laminated glass and other types of glass.

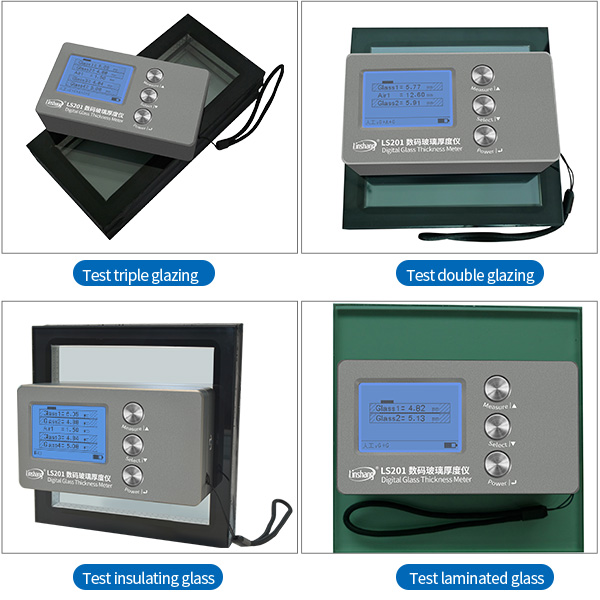

LS201 digital glass thickness gauge test different materials

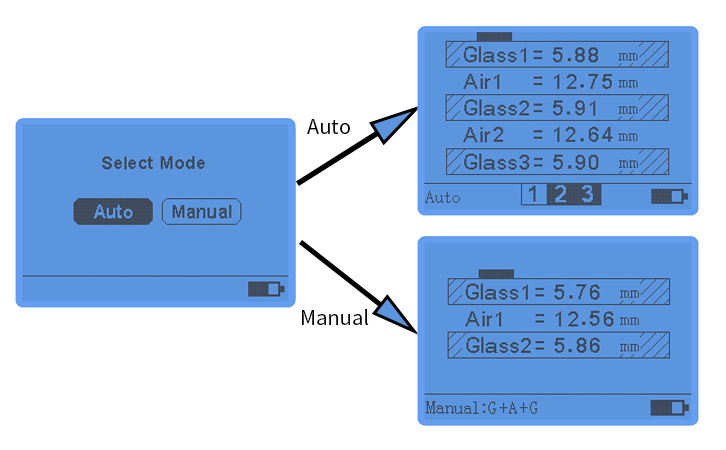

4．Automatic measurement mode and manual measurement mode can be switched, the instrument can accurately test the thickness of insulating glass of various specifications.
LS201 glass thickness measuring tool measure double glazing
5. In manual mode, we can set the corresponding parameters according to the actual type of glass and get accurate data.

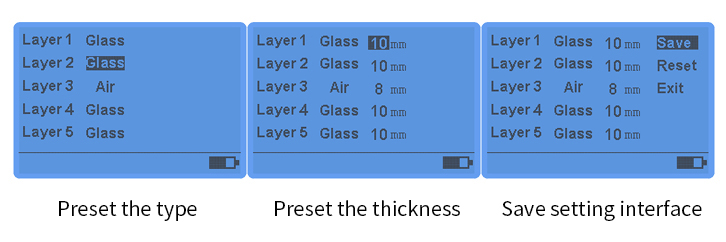

LS201 glass thickness meter manual mode setting
6. The Chinese and English display modes can be switched.
7. The instrument has high-definition large screen with backlight, the data can be read in dark environment.
IV. LS201 Digital Glass Thickness Meter Qualification
glass thickness meter patent cerfiticate
V. LS201 Digital Glass Thickness Meter Operation Video
VI. LS201 Digital Glass Thickness Meter Packaging Details
|
No. |
Description |
Quantity |
Unit |
|
1 |
LS201 Digital Glass Thickness Meter |
1 |
pcs |
|
2 |
User Manual |
1 |
pcs |
|
3 |
Certificate / warranty card |
1 |
pcs |
|
4 |
Cloth bag |
1 |
pcs |
|
5 |
AAA alkaline dry batteries |
4 |
pcs |
|
6 |
Packing box dimension 25*21*7 cm（L*W*H）
|
1 |
pcs |

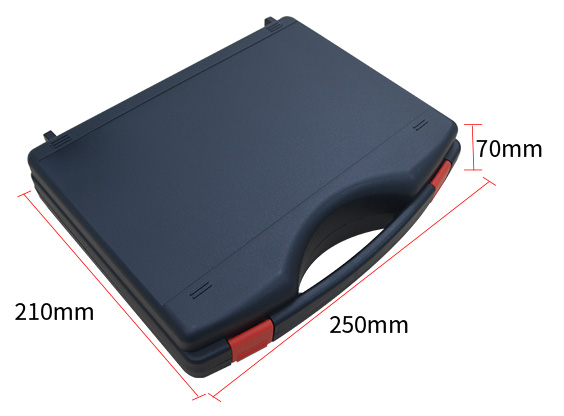

LS201 glass thickness gauge package
VII. LS201 Digital Glass Thickness Meter After-Sales Service
1.The meter has one-year warranty. If the instrument works abnormally, please send the whole instrument to our company for maintenance
2.Provide users with spare parts and lifelong maintenance services
3.Provide the users with the meter inspection service
