Thanh khử tĩnh điện Kasuga KD-309B, KD-309BS, KD-309L, KD-309LBS, KD-309W

Features

• DC-type units that eliminate static by generating ions
• The good ion polarity balance ensures that there is virtually no reverse charging caused by ion irradiation.
• The good ion polarity balance ensures efficient static elimination regardless of the polarity or potential of the charged object.
• The long ion irradiation distance makes this unit suitable for static elimination from charged objects moving at high speed.
• The unit emits an extremely small amount of ozone.
• The current-limiting resistor of the ion-generating electrode, which minimizes electric shocks, ensures safety.
• Being a DC-type unit, this static eliminator does not cause the surface potential fluctuation of the charged object that would be caused by a PULSE-DC-type unit.
• The CKDB and KDB-SI-type units permit replacement of electrode needles.
• An environmentally friendly static eliminator designed for low power consumption

Specifications

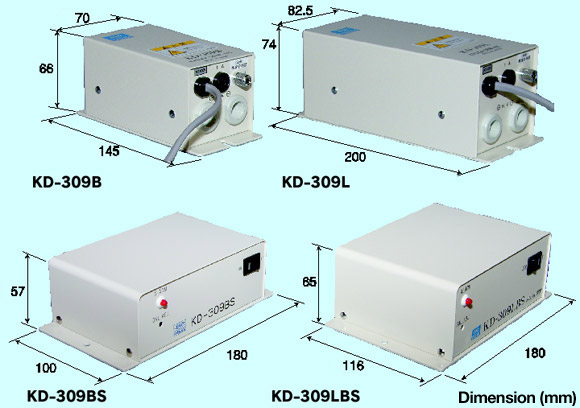

High-voltage power supply device

Type of electrode

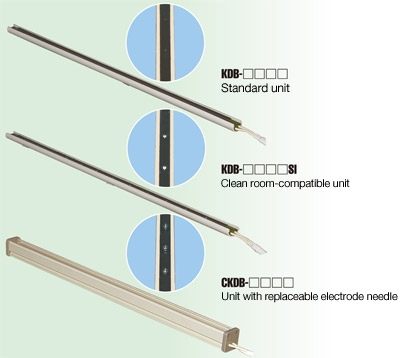

Standard unit

(Electrode needle: tungsten) 100 mm - 1,100 mm
(With round reinforcement pipe, electrode needle: tungsten) 1,100 mm - 3,000 mm
(With rectangular reinforcement pipe, electrode needle: tungsten) 3,000 mm or longer

Clean room-compatible unit with replaceable electrode needle

KDB-□□□□SI (Electrode needle: polysilicon) 100 mm - 1,100 mm
KDB-□□□□SIP (With round reinforcement pipe, electrode needle: polysilicon) 1,100 mm - 3,000 mm

Unit with replaceable electrode needle

CKDB-□□□□ (Electrode needle: special alloy) 100 mm - 3,000 mm
(Reinforcement required at 1,100 mm or longer)

*Electrode length is variable in steps of 100 mm within the designated range. Specify the length at the time of the order.
