Thanh khử tĩnh điện Kasuga APKF-450B, APKF-650B, APKF-550B, APKF-750BH, APKF-850BH, APKF-950BH, APKF-1050BH

Thanh khử tĩnh điện Kasuga APKF-450B, APKF-650B, APKF-550B, APKF-750BH, APKF-850BH, APKF-950BH, APKF-1050BH, APKF-1150BH, APKF-1250BH, APKF-1350BH, APKF-1450BH, APKF-1550BH, APKF-1650BH, APKF-1750BH, APKF-1850BH, APKF-1950BH, APKF-2050BH, APKF-2150BH, APKF-2250BH, APKF-2350BH, APKF-2450BH, APKF-2550BH,
PKF-550BA, PKF-850BA, PKF-1150BA

Features

• The cleaning lamp lets you know when the unit needs cleaning, enabling performance of maintenance at the appropriate time. (APKF-0000-H only)
• A high-voltage generator circuit is incorporated in the static eliminating electrode, which enhances safety since high-voltage wiring is not used.
• The DC static eliminator features grounding electrodes, which stabilize corona discharge (patent pending). This enables higher stability of the electric field shield effect and ion balance and less frequent cleaning of the discharging electrodes.
• Static-eliminating electrode needles made of a special alloy with low dust emission come as standard equipment, which allows the unit to be used in a clean-room environment. The needles can easily be replaced.
• Use of the unit with clean air permits high-speed static elimination.
• A DC-type unit, the static eliminator generates far more ions than other units, resulting in high-speed static elimination.
• The ion balance can be fine-tuned to maintain 0-volt potential of the static elimination area.

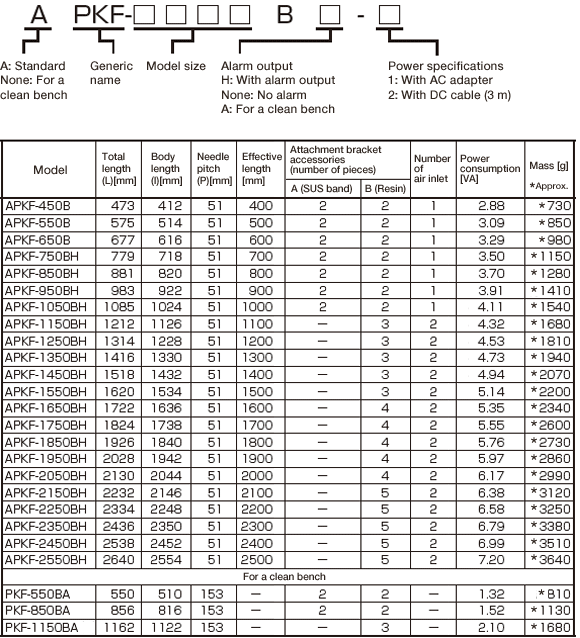

Specifications

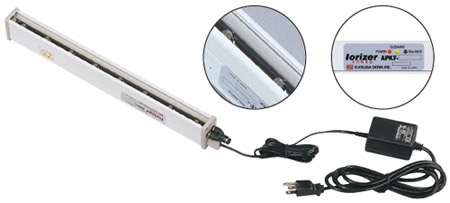

Main unit (static eliminator)

Dedicated AC adapter (Power specifications 1)

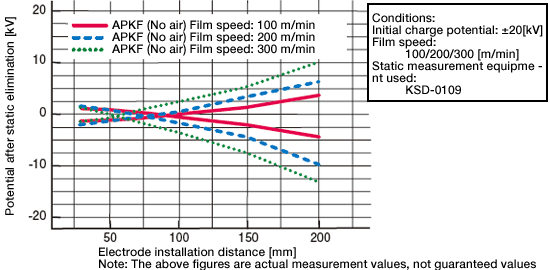

Static elimination performance for fast-moving films

Static elimination performance of the static eliminator installed on a clean bench with down flow

Dimensions [mm] and names of parts
