The KSR-1201/KSR-1001 monitors generated static on a real-time basis, and is capable of saving, collecting and analyzing the measured data. It enables thorough measuring and management of static, as well as countermeasures, thereby improving the efficiency of production and the quality of products.
(A national certificates verifying explosion proofing was obtained in Japan, China and Taiwan, and is pending in South Korea.)

Features

Quick measurement at max.100 ms (KSR-1001)
Allows data input via up to 12 channels for KSR-1201 and 10 channels for KSR-1001 and management of the data.
Used with the detector KS-2001 and the safety barrier KS-300A, the KSR-1201 and the KSR-1001 permit measurement in dangerous atmospheres (explosion class: 2, ignition temperature: G4)

Various display options

ＫＳＲ－１００１

KSR-1001 DISPLAY2.png

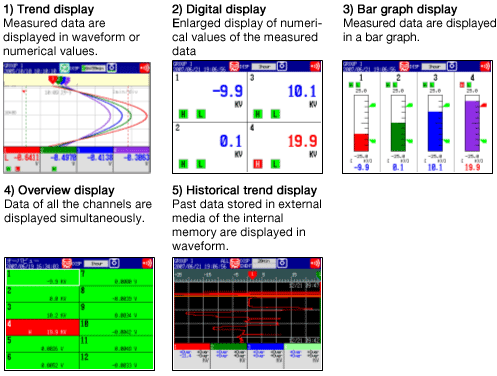

ＫＳＲ－１２０１

Data management with software

Real-time monitoring (optional)
Data can be monitored from this equipment in trend waveform, etc. on a real-time basis on a PC connected to the unit via a network.

Data monitoring

Data can be monitored from this equipment in a simplified manner, such as in trend waveform, on the browser of a PC connected to the unit via a network.

Data viewer

Data files saved in this monitoring equipment or on a PC can be displayed.

Alarm function

Alarm output relay
Outputs contact signals in the event of an alarm
Alarm summary display
Alarm history list is displayed

Specifications

Model		KSR-1001	KSR-1201
Detection method		Vibration-type static sensor
Measuring ranges		±0.1 - 20.0kV
Measurement precision		Within ±10%
Standard measurement distance		100mm
Control setting		Permits two settings (Independent settings for + and – are possible.)
Control output		Independent outputs for four control settings	Independent outputs for two control settings
Max. connecting channels		10CH	12CH
Recorder on board		MT-100 (Manufacture - Graphtec corp.)	DX1012 (Manufacture - YOKOGAWA)
Operating environment		Temperature: 0°C-40°C, Humidity: 65% RH or below (no condensation)
Power supply		AC100V or 200V (switchable), 50/60 Hz
Power consumption		Approx. 60VA
Configurations	Main unit control display	KSR-1001	KSR-1201
	Detector	KS-2001 (cable length: 5 m, can be extended to 100 m) Connection via up to 12 channels is possible.
	Safety barrier	KS-300A (equipment related to intrinsically safe explosion-proof structure [certified product])Connection via up to 12 channels is possible.
Mass	KSR-1201	Approx. 12.5 kg (when 12 channels are used)
	KS-2001	Approx. 50 g (not including cable)
	KS-300A	Approx. 125 g
