I. LS300 Solar Film Temperature Meter Introduction
Linshang LS300 solar film temperature meter is a professional instrument for the demonstration of thermal insulation effects of materials such as automotive films, thermal insulation glass and thermal insulation coatings. It can simultaneously test the thermal insulation effects of two different materials and directly display the temperature difference. This meter is also a solar film temperature measuring box that you can feel the temperature with your hands.

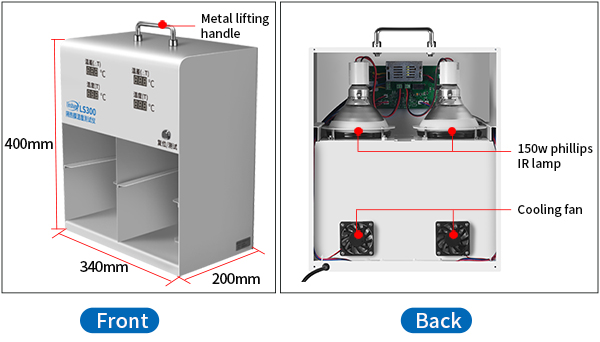

LS300 solar film temperature meter appearance
II. LS300 Solar Film Temperature Meter Parameters
|
Unilateral temperature measurement accuracy
|
± 0.5 °C |
|
Temperature unevenness of double lamps
|
2°C |
|
Temperature measurement range
|
-55°C to + 125°C |
|
Temperature test time
|
1 minute |
|
Test glass size (not included)
|
200mm × 160mm |
|
Weight |
about 13 kg |
|
Dimension |
340mm ×200mm × 400 mm(L*W*H)
|
|
Power supply |
220V AC |

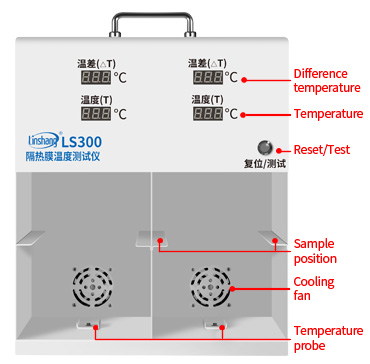

LS300 automotive window tint meter
III. LS300 Solar Film Temperature Meter Characteristics

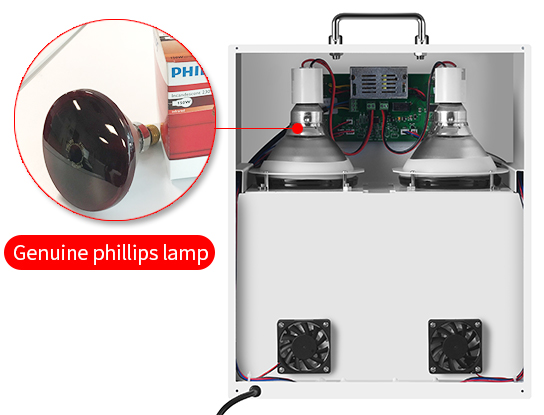

1. Using 150W genuine Philips infrared light with better insulation effect.
LS300 solar film temperature meter back
2. The LS300 solar film temperature meter can simultaneously display the real-time temperature value and the rising temperature difference during the test. You can directly touch the temperature inside the box with both hands. We use the following figure as an example to explain how to read and understand the test data.
(1) The temperatures on the left and right sides before the test are 35.8℃and 35.8℃, respectively.
(2) After turning on the light, the left temperature rise 16℃, the temperature difference (16℃) = the temperature after the test (51.8℃)-the temperature before the test(35.8℃).
(3) After turning on the light, the right temperature rise 2.8℃, the temperature difference (2.8℃) = the temperature after the test (38.6℃)-the temperature before the test(35.8℃).
(4) Test results: The smaller the temperature difference, the better the insulation effect of the material.

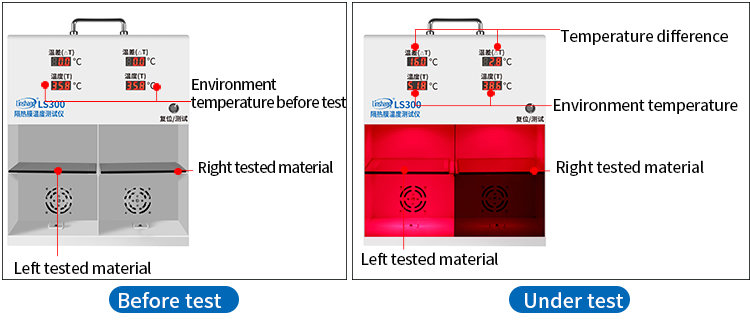

LS300 solar film temperature meter working process
IV. LS300 Solar Film Temperature Meter Qualification
solar film tester patent certificate
V. LS300 Solar Film Temperature Meter Operation Video
VI. LS300 Solar Film Temperature Meter Packaging Details
|
No. |
Description |
Quantity |
Unit |
|
1 |
LS300Solar Film Tester |
1 |
pcs |
|
2 |
User Manual |
1 |
pcs |
|
3 |
Certificate / warranty card |
1 |
pcs |
|
4 |
Packing box dimension
29*49*41 cm（L*W*H）
|
1 |
pcs |

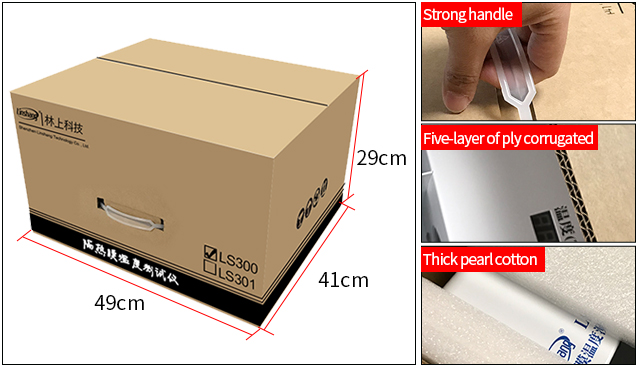

LS300 Solar film temperature meter package
VII. LS300 Solar Film Temperature Meter After-Sales Service
1.The meter has one-year warranty. If the instrument works abnormally, please send the whole instrument to our company for maintenance
2.Provide users with spare parts and lifelong maintenance services
3.Provide the users with the meter inspection service
