Semiconductor Coupling

SUSP Series



For high purity chemicals
Semiconductor manufacturing
equipments,
Medical fluids connections,
Biotechnology, Scientific equipments





Stainless Steel (SUS316) couplings for high purity chemicals applications



 Features




>>



SUSP coupling body and parts are basically made of stainless steel ( SUS316 ). Automatic shut-off valves
are built into both socket and plug.





>>



A wide variety of packing (seal) materials are available to suit various fluids, chemicals used in semiconductor, biotechnology, scientific equipments and chemical industries.





>>



Electro polished or passivated body and parts are available upon request.





>>



Various sizes available to meet flow rate and application requirements.





>>



Assembled and packed in clean room with precision quality control.





 Applications




>>



SUSP series couplings are widely used in semiconductor manufacturing equipments, special gas handling equipments, medical fluids connections, biotechnology, pure water piping, scientific equipments, sea water handling equipments and so on.





 Specifications



Body Material

Stainless Steel (JIS SUS 316) Electro-polished

Size

1/8", 1/4", 3/8"

1/2", 3/4", 1"

Working Pressure MPa (Kgf/cm²)

7.4 (75)

4.4 (45)

Pressure Resistance MPa (Kgf/cm²)

9.8 (100)

6.4 (65)



Packing Material,
Working
Temperature

Material

Symbol

Working Temperature

Remarks

Nitride butadiene rubber

NBR

-20°C ∼ +80°C

Standard material

Fluorine rubber

VT-20

-15°C ∼ +180°C

Standard material

Ethylene propylene rubber

EPT

-15°C ∼ +100°C

Semi-Std. material

Perfluroelastomer

P

-0°C ∼ +200°C

Semi-Std. material

Kalretz

K

-0°C ∼ +200°C

Semi-Std. material




 Charactristics


Zoom



Conditions: Standard Fluid,    Temperature: 35°C +/-5°C

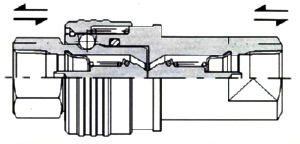

 Fluid Flow Direction





Fluid flows in either direction from socket or plug




 Product Models & Dimensions



Plug



Socket

Model

L
(mm)

A
(mm)

E
(mm)

T

H
(mm)

Mass
(g)

SUP-150

29

19

11

Rc
1/8

Hex.14

18

SUP-250

35.5

22

12.4

Rc
1/4

Hex.17

35

SUP-350

39.9

25.2

13

Rc
3/8

Hex.21

60

SUP-450

44

28

15

Rc
1/2

Hex.29

115

SUP-650

52

36.5

19

Rc
3/4

Hex.35

191

SUP-800

62

40

20

Rc
1

Hex.41

330



* Bigger sizes are available upon request.

Model

L
(mm)

D
(mm)

E
(mm)

T

H
(mm)

Mass
(g)

SUS-150

48

24

11

Rc
1/8

Face width
14

85

SUS-250

58

28

12.4

Rc
1/4

Face width
17

137

SUS-350

65

35

13

Rc
3/8

Face width
21

207

SUS-450

71.7

45

15

Rc
1/2

Face width
29

441

SUS-650

88

55

19

Rc
3/4

Face width
35

730

SUS-800

102

64

20

Rc
1

Face width
41

1070




Ordering Information

SU

S

-

250

-







① Type

S

Socket

P

Plug

② Size

150

1/8

250

1/4

350

3/8

450

1/2

650

3/4

800

1

③ Packing Material

NBR

 Nitride butadiene rubber

VT-20

 Fluorine rubber

ETP

 Ethylene propylene rubber

P

 Perfluoro elastomer

K

 Kalretz
