Khớp nối New-Machine MSP series

Ngày đăng: 21/02/2018 - 81 lượt xem

Giá: Liên hệ
Khớp nối New-Machine MSP series dùng cho ngành khuôn mẫu
  • Xuất xứ:
  • Tình trạng:
  • Model:
  • Bảo hành:
Số lượng:

Hotline:

Hotline: 0243.9612691

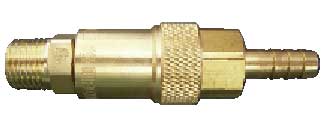

Mould Coupling

MSP Series



For Mould, Die Coolant Applications





Quick replacement of coolant hose
High Corrosion Resistance




 Features




>>



Quick replacement (Connection, Disconnection) of coolant hose to mould and die




>>



High Corrosion resistance. Several models available to suit wide variety of mould applications




>>



One touch operation. Reduces operator fatigue, simple connection method eliminates previous time consuming coolant hose connection, disconnection process and improves productivity





 Specifications



Body Material

Brass

Size

1/8" , 1/4" , 3/8"

Working Pressurer MPa (Kgf/cm²)

1.0 (10)

Pressure Resistance MPa (Kgf/cm²)

1.5 (15)



Packing Material, Working
Temperature

Material

Symbol

Working
Temperature

Remarks

Fluorine rubber

VT-20

-15°c ∼ +180°c

Standard




 Minimum Cross Sectional Area (mm²)



Model

MSP-01

MSP-02

MSP-03

Area

19

28

28




 Characteristics: Flow Rate Vs. Pressure Loss

Zoom


Measuring conditions: Water Fluid, Temperature: Room Temperature

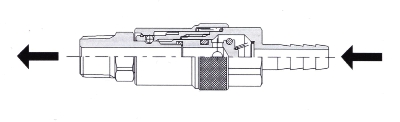

 Fluid Flow Direction





Fluid flows from socket to plug





 Product Models & Dimensions



 Plug



Socket



 PF Series

Female Thread Connection

SF Series

Model

L
(mm)

A
(mm)

d
(mm)

E
(mm)

T

H
(mm)

Mass
(g)

MPF-01

28

15

6

10

Rc
1/8

Hex.14

16

MPF-02

30.5

15

6

13

Rc
1/4

Hex.17

24

Model

L
(mm)

B
(mm)

D
(mm)

T

H
(mm)

Mass
(g)

MSF-01

48.8

18

21

Rc
1/8

Hex.17

70

MSF-02

48.8

18

21

Rc
1/4

Hex.17

67



 PM Series

Male Thread Connection

SM Series

Model

L
(mm)

A
(mm)

d
(mm)

E
(mm)

T

H
(mm)

Mass
(g)

MPM-01

31

15

6

10

R 1/8

Hex.12

12

MPM-02

32

15

6

11

R 1/4

Hex.14

19

MPM-03

35

15

6

14

R 3/8

Hex.19

33

Model

L
(mm)

B
(mm)

D
(mm)

E
(mm)

T

H
(mm)

Mass
(g)

MSM-01

50.8

18

21

11

R 1/8

Hex.17

62

MSM-02

52.8

18

21

13

R 1/4

Hex.17

67

MSM-03

52.8

18

21

13

R 3/8

Hex.17

75



 PH Series

Hose Connection

SH Series

Model

L
(mm)

A
(mm)

C
(mm)

D
(mm)

d
(mm)

E
(mm)

Mass
(g)

MPH-02

42

15

8

12

5

21

14

MPH-03

42

15

12

15

6

21

23

Model

L
(mm)

B
(mm)

C
(mm)

D
(mm)

E
(mm)

H
(mm)

Mass
(g)

MSH-02

60.8

18

8

21

21

Hex.17

60

MSH-03

60.8

18

12

21

21

Hex.17

69



 PL Series

L Type



Model

L1
(mm)

L2
(mm)

A
(mm)

d
(mm)

E
(mm)

T

Mass
(g)

MPL-01

24

21

15

6

12

R 1/8

22

MPL-02

24

21

15

6

12

R 1/4

32

MPL-03

25

26

15

6

13

R 3/8

69


Ordering Information

M

N

S

M

-

02

-







① Model

No Mark

With Valve

N

Without Valve



② Type

S

Socket

P

Plug

③ Connection

M

Male Thread

F

Female Thread

H

Hose

L

Male Thread
(L Type)



④ Size

01

1/8

02

1/4

03

3/8

⑤ Packing Material

VT-20

Fluorine Rubber
