Khớp nối New-Machine CA00(SUS316) series

Ngày đăng: 21/21/2018 - 48 lượt xem

Giá: Liên hệ
  • Xuất xứ:
  • Tình trạng:
  • Model:
  • Bảo hành:
Số lượng:

Hotline:

Hotline: 0243.9612691


Micro Super Mini Coupling

CA00 Series



For high purity chemicals
Semiconductor manufacturing equipments
Medical fluids connections,
Biotechnology, Scientific equipments





Excellent performance for precision equipments



 Features




>>



Super mini-size automatic couplings with largest diameter 10mm.





>>



Automatic shut-off valve made by stainless steel is built in the socket.





Custom-made CA00 series are available on requests.





OEM or design-in CA00 series are available such as panel-mounted and etc.





 Specifications



Body Material

Stainless Steel (SUS 316)

Size

M5 , 1/8" ,  Tube ø 3 mm x ø 5 mm,  ø 4 mm x ø 6 mm

Working Pressure MPa (Kgf/cm²)

1.0 (10)

Pressure Resistance MPa (Kgf/cm²)

1.5 (15)



Packing Material

Material

Symbol

Working Temperature

Remarks

Fluorine rubber

VT-20

-15°C ∼ +180°C

Standard material

Perfluoro elastomer

P

0°C ∼ +200°C

Semi-Std. material

Butyl rubber

BU

-40°C ∼ +100°C

Semi-Std. material

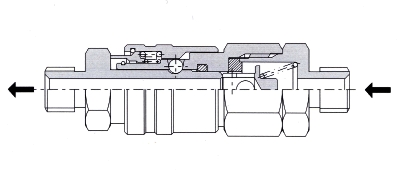

 Fluid Flow Direction





Fluid flows in either direction from socket or plug




 Product Models & Dimensions



Plug



Socket



 FP Series (Plug)

Female Thread Connection

FS Series (Socket)

Model

L
(mm)

A
(mm)

T

E
(mm)

H
(mm)

d
(mm)

Mass
(g)

CA00-FP
M5

18.5

12.5

M5P0.8

5

Hex.8

2.4

3

Model

L
(mm)

D
(mm)

T

E
(mm)

H
(mm)

d
(mm)

Mass
(g)

CA00-FS
M5

28.4

11

M5P0.8

5.5

Hex.10

3.5

10



Model

L
(mm)

A
(mm)

T

E
(mm)

H
(mm)

d
(mm)

Mass
(g)

CA00-FP
Rc1/8

24

12.5

Rc
1/8

9

Hex.14

2.4

3

Model

L
(mm)

D
(mm)

T

E
(mm)

H
(mm)

d
(mm)

Mass
(g)

CA00-FS
Rc1/8

33

11

Rc
1/8

9

Hex.14

4

16



 MP Series (Plug)

Male Thread Connection

MS Series (Socket)

Model

L
(mm)

A
(mm)

T

E
(mm)

H
(mm)

d
(mm)

Mass
(g)

CA00-MP
M5

19.8

12.5

M5P0.8

4.5

Hex.8

2.4

3

Model

L
(mm)

D
(mm)

T

E
(mm)

H
(mm)

d
(mm)

Mass
(g)

CA00-MS
M5

28.2

11

M5P0.8

4.5

Hex.10

2.5

10

Model

L
(mm)

A
(mm)

T

E
(mm)

H
(mm)

d
(mm)

Mass
(g)

CA00-MP
R1/8

27

12.5

R
1/8

10

Hex.12

2.4

9

Model

L
(mm)

D
(mm)

T

E
(mm)

H
(mm)

d
(mm)

Mass
(g)

CA00-MS
R1/8

34.9

11

R
1/8

10

Hex.12

4

16



 HP Series (Plug)

Hose Connection

HS Series (Socket)

Model

L
(mm)

A
(mm)

D
(mm)

C
(mm)

E
(mm)

d
(mm)

Mass
(g)

CA00-HP
ø5Xø3

23.3

12.5

8

3.5

7

1.6

4

CA00-HP
ø6Xø4

23.3

12.5

8

4.7

8

2.4

12

Model

L
(mm)

D
(mm)

C
(mm)

E
(mm)

H
(mm)

d
(mm)

Mass
(g)

CA00-HS
ø5Xø3

30.7

11

3.5

7

Hex.10

1.6

12

CA00-HS
ø6Xø4

31.7

11

4.7

8

Hex.10

2.4

19

Ordering Information

CA-00

M

S

-

-SUS316-







① Connection

M

 Male Thread

F

 Female Thread

H

 Hose

② Type

S

Socket

P

Plug

③ Connector Size

M5

R1/8

Rc1/8

ø5xø3

ø6xø4

③ Packing Material

VT-20

 Fluorine rubber

P

 Perfluroelastomer

BU

 Perfluoro elastomer
 Butyl rubber
